TRENDnet TL2-G244 - RSTP Port Status; LA Basic Settings

24-Port Gigabit Layer 2 Switch w/ 4 Shared Mini-GBIC Slots
6-14
Select
Select a port to apply the changes.
Port
Port ID.
Port Role
Specify the current role of the port.
Port Priority
Specify the spanning tree port priority. Possible value is 0-240. Default is 128.
RSTP Status To enable or disable the RSTP on this port. Select Enable to enable RSTP on
this port, Disable to disable it. Default is enabled.
Path Cost
Specify the path cost of the port. Possible value is 0-200000000. Default
65535
Protocol Migration To control if the port will migrate among MSTP, RSTP and STP automatically if
another switch runs different protocol. Select True to enable the protocol
migration function, False to disable it. Default is False.
Admin Edge Port Specify if this port is edge port or not. Select True to enable the portfast
function, False to disable it. Default is False.
Admin Point To Point
Specify the link type of this port. ForceTrue means link type is point to point;
ForceFalse means it is shared; Auto means the decision will made
automatically. Default is Auto.
AutoEdge Detection To enable or disable the auto edge detection of this port. Select True to
enable the auto edge function, False to disable it. Default True.
Restricted Role To enable or disable the root guard function to prevent the port becoming a
root port. Select True to enable the root guard function, False to disable it.
Default is False.
Restricted TCN
To enable the topology change guard function to prevent the topology change
caused by this port. Select True to enable the topology change guard
function,
False
to disable it. Default is False.
RSTP Port Status
To display the current RSTP port status.

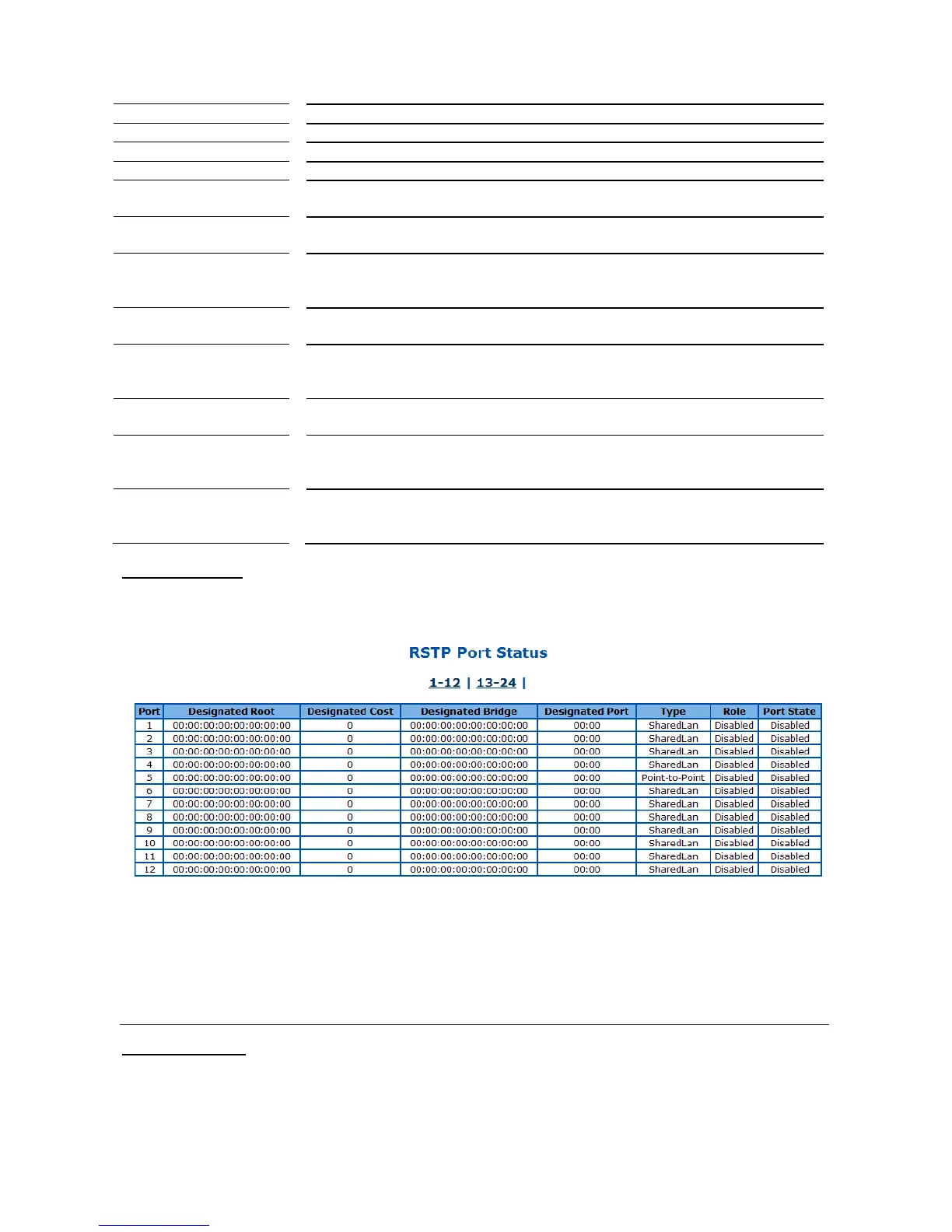

Figure 47 – Layer2 Management > RSTP > Port Status
Click 1-12, 13-24 to display the statistics for corresponding ports.
LA
LA Basic Settings
This page is to configure the link aggregation basic settings.
