24-Port Gigabit Layer 2 Switch w/ 4 Shared Mini-GBIC Slots

5-14

Reboot

This page is to reboot the system.

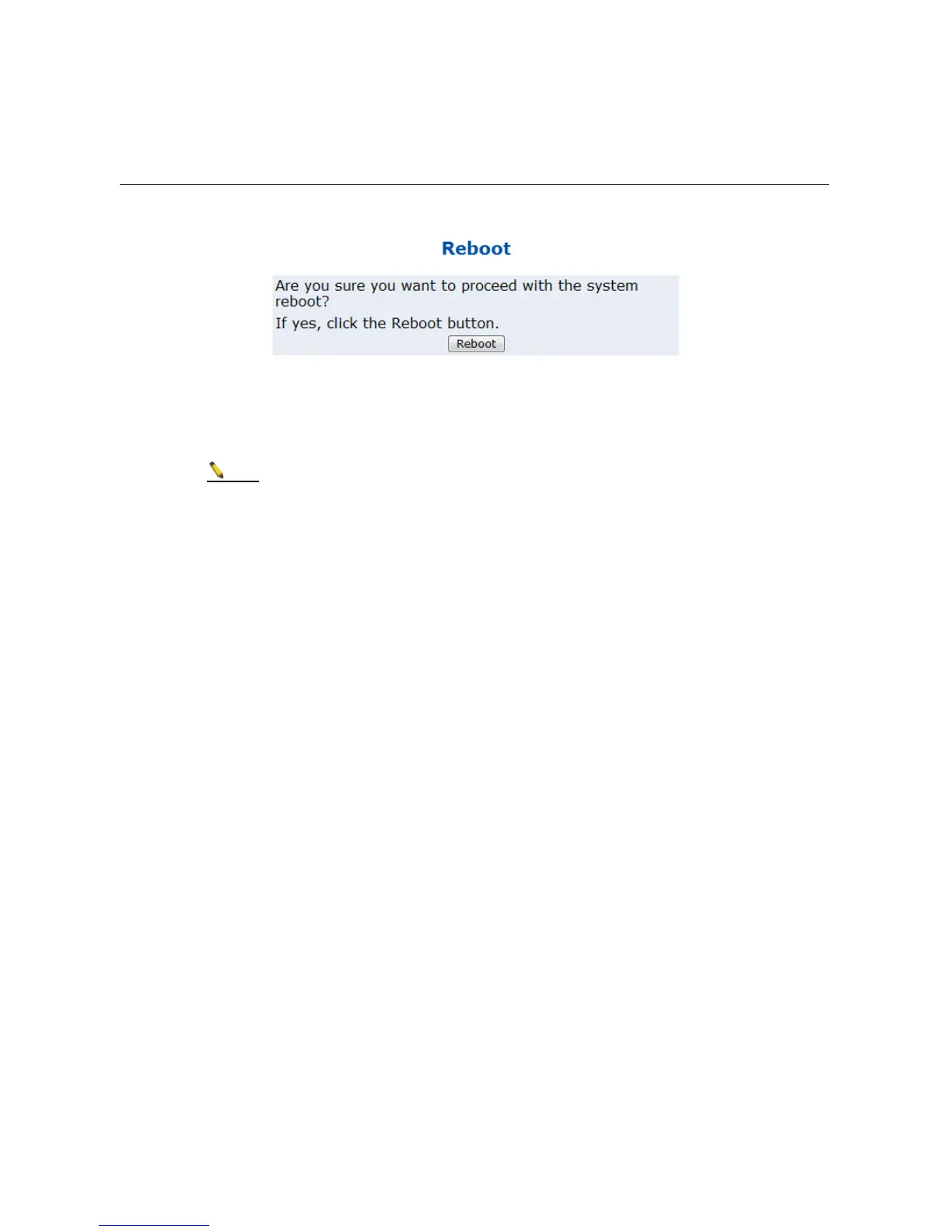

Figure 28 – System > Reboot

Click Reboot to warm start the device.

Note

If the Switch reboots without write the running configurations,

the last

configuration wrote in NV-RAM will be loaded.
