Chapter 7
Configuring ACL Functions
ACL Function List
 MAC ACL Configuration
 IP Standard ACL Configuration
 IP Extended ACL Configuration
 Classmap Settings
 Policymap Settings
MAC ACL Configuration
This page is to create/configure a rule to MAC Access Control List.

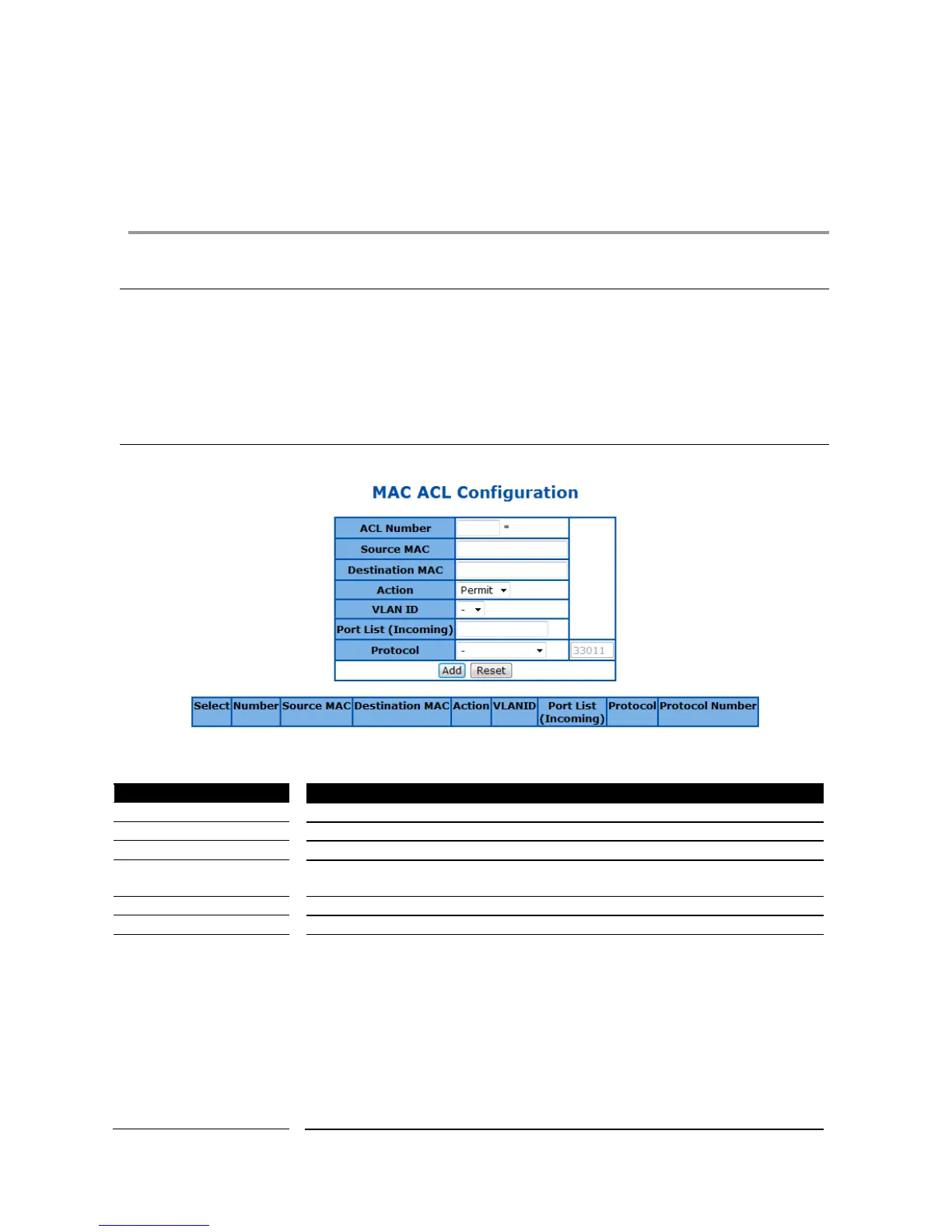

Figure 67 – ACL > MAC ACL
Parameter
Description
ACL Number
Specify the ACL ID of this rule. The possible ID of MAC ACL is 1-65535.
Source MAC
Matching packets with a specific source MAC address.
Destination MAC
Matching packets with a specific destination MAC address.
Action
Specify the action for packet matched. Select Permit to process the packets,
Deny to discard them.
VLAN ID
Matching packets with a specific VLAN ID.
Port List (Incoming)
Specify the ports to apply this ACL rule.
Protocol
Matching packet with specific protocol (Ether type). The options are:
Protocol Ether Type
aarp 0x80F3(33011).
amber 0x6008(24584).
dec-spanning 0x8138(33080).
decnet-iv 0x6003(24579).
diagnostic 0x6005(24581).
dsm 0x8309(32825).
etype-6000 0x6000(24576).
etype-8042 0x8042(32834).
lat 0x6004(24580).
