24-Port Gigabit Layer 2 Switch w/ 4 Shared Mini-GBIC Slots
6-5

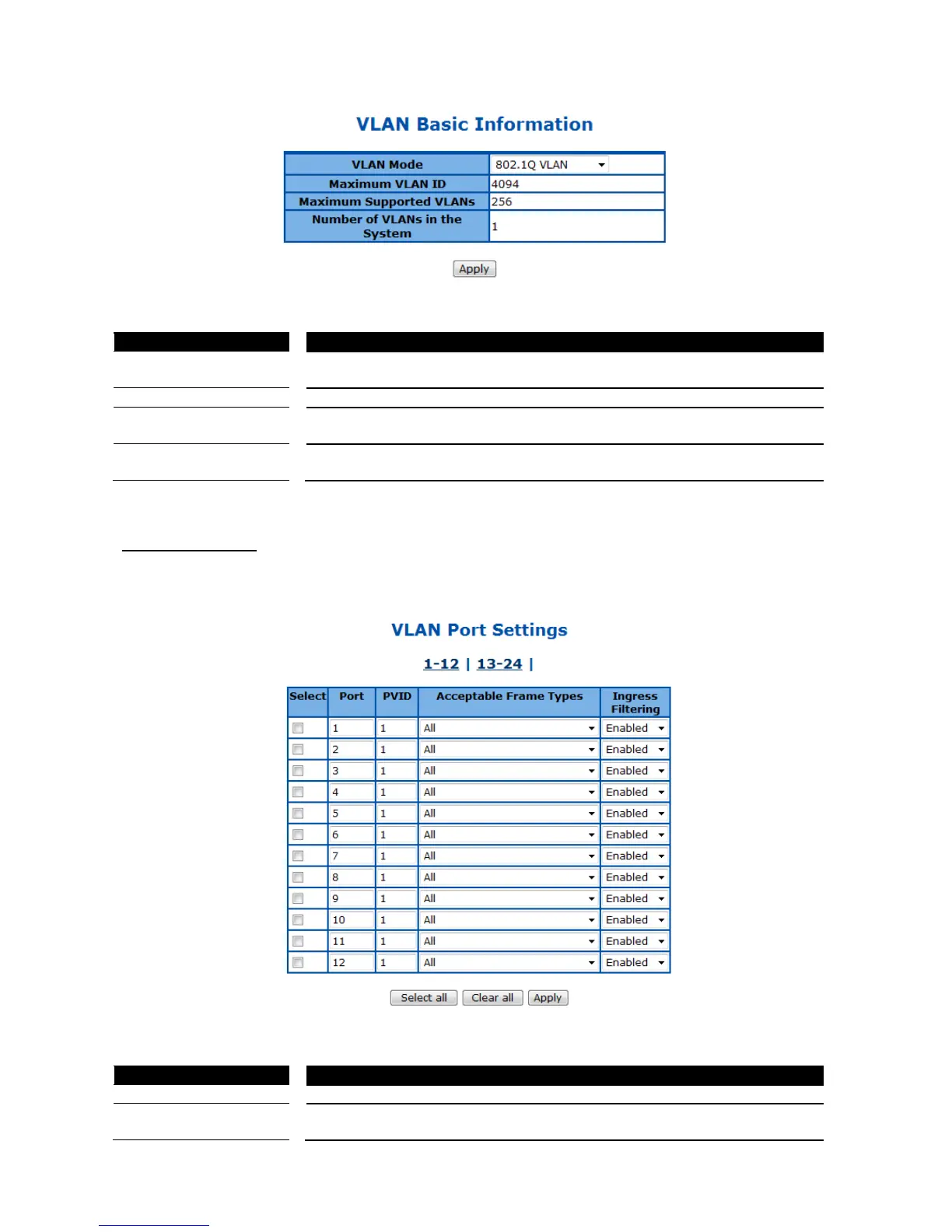

Figure 32 – Layer2 Management > VLAN > Basic Information
VLAN Mode Choose from 802.1Q VLAN or Asymmetric VLAN modes. Default is 802.1Q
Display the maximum VLAN ID can be configured. Default is 4094.
Display the maximum VLANs can be supported. Default is 256.
Number of VLANs in
Display the current VLAN number in the system. Default is 1.
Click Apply to submit the changes.
VLAN Port Settings
This page is to configure VLAN setting on physical port interfaces.
Figure 33 – Layer2 Management > VLAN > Port Settings
Specifies the switch port which is to be configured.
PVID To set the port VLAN ID of the port, all ingress untagged or priority tagged
packet from this port will be assign to this VLAN. The range is from 1 to 4094.
