2: Getting Started
Docking Station Functionality
Charging your Dosimeter
The number of hours you have used your dosimeter from your last charge will impact your total
charge time. For example, if the battery clock indicator (see “Checking battery power” for more
information) displays 20 hours remaining on the battery and you want to charge the battery, the
approximate charging time is 2 hours.
NOTE: To charge a fully discharged battery, it would take approximately 3 to 3.5 hours.
How to charge
1. Plug in the power adapter to the EdgeDock. (See power adapter below.)
The EdgeDock’s lower LED will appear solid when powered on.
2. Slide the Edge (see 1) downward onto the Hook of the EdgeDock until it clicks. It will be
fully seated. (See 2 in Figure below).
NOTE: The top LED will appear as red flashing or solid green when fully charged.

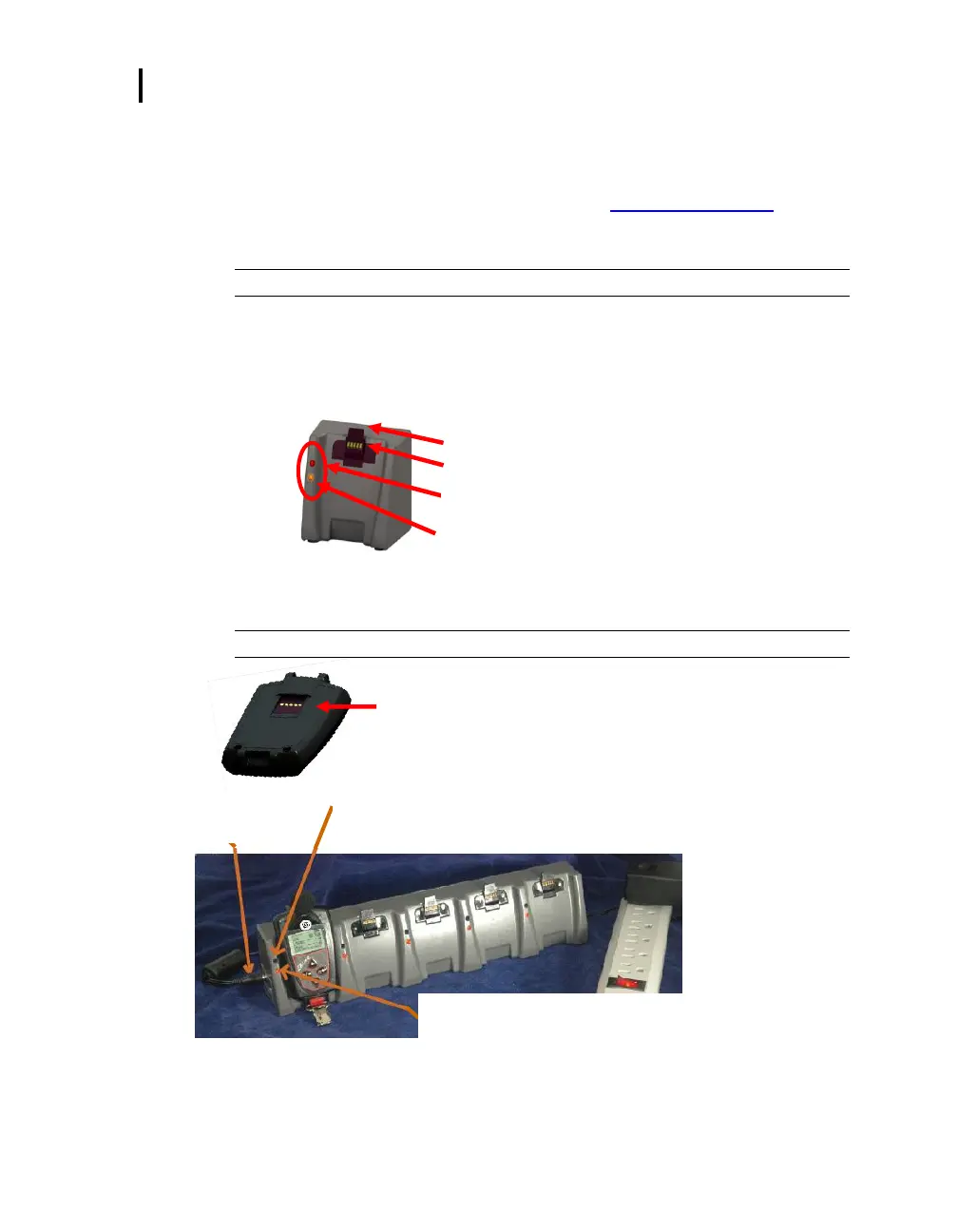

Figure 2-7: Docking the Edge on the EdgeDock
2. Example of the Edge Charging
1. Backside of Edge:
The open cavity & contacts slides into the “Hook” of
EdgeDock. The contacts will align to each other.
Dosimeter Charge status’ (Upper LED):
Flashing Red LED when charging
Solid Green LED when fully charged
EdgeDock station status (Lower LED)
Flashing Red when charging
Solid Green LED when fully charged.
Amber LED indicates dock is powered on but Edge is not docked.
