EdgeDock1 and EdgeDock5
EdgeDock1 and EdgeDock5
EdgeDock1 and EdgeDock5 are powered by a 12-volt charger adapter with international plug
adapters. The backside of the Edge slides into the hook of the EdgeDock1 or EdgeDock5 with
the mounting clasps rotating to a 90-degree angle (which will rest on a table/work area).
Additionally, the EdgeDock1 (or EdgeDock5) are equipped with two single screw slots for wall
mounting purposes.

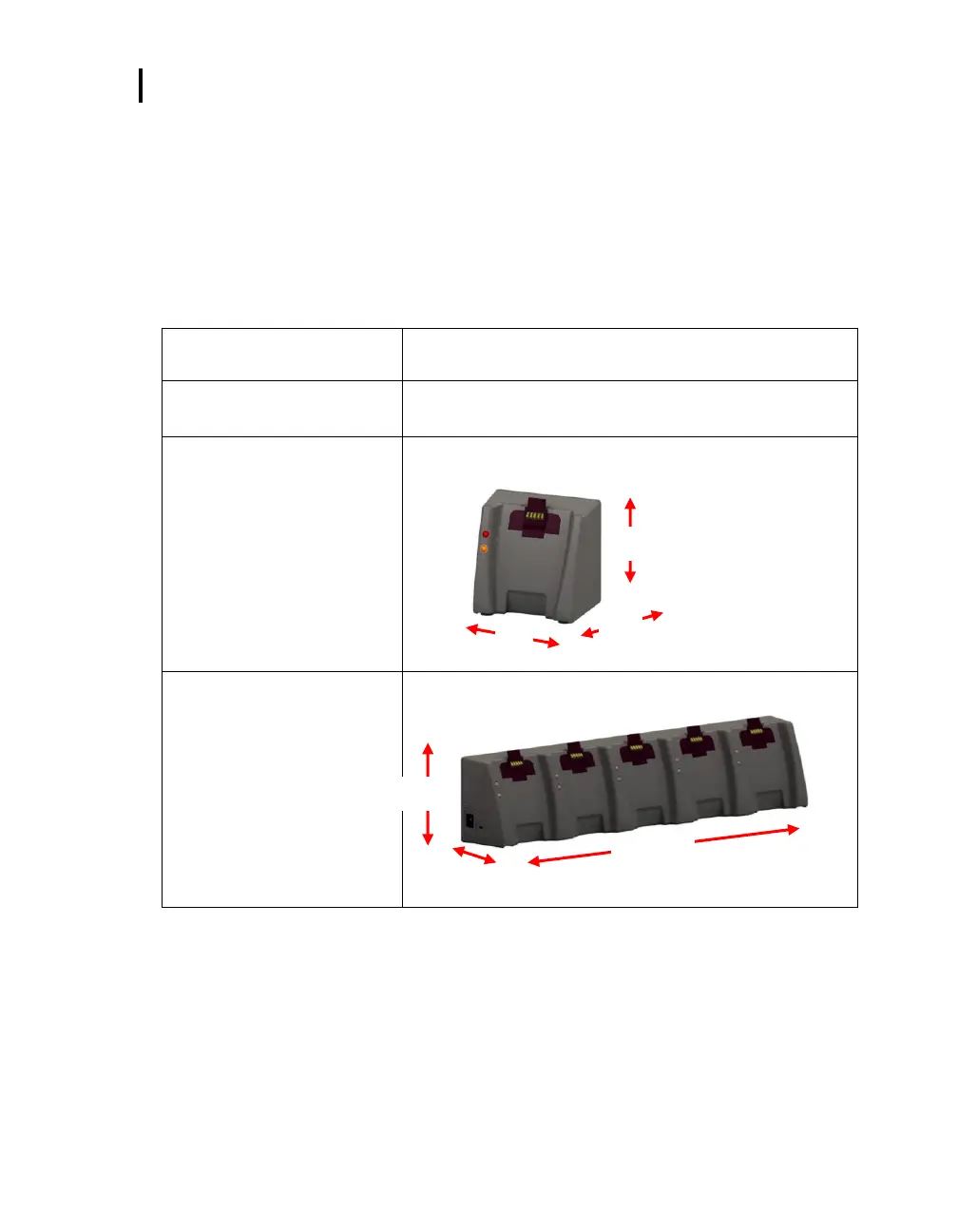

Physical Attributes of EdgeDock1 and EdgeDock5
LED amber indicator
Indicates EdgeDock1 or EdgeDock5 is “powered on”. (Lower
of the two shown LEDs).
LED Red indicator and
LED Green indicator
Signifies status of charging. Flashing red indicates charging.
Solid green indicates charging is complete.
Size of EdgeDock1
2.75” x 2.75” x 2.2” (6.99 cm x 6.99 cm x 5.6 cm)
Size of EdgeDock5
12.75” x 2.2” x 2.75” (32.29 cm x 5.08 cm x 6.99 cm)
