4 Product Description
The device is designed in a fully encapsulated housing with degree of protection IP65/IP67/
IP69K. The Ethernet ports serve as interface for programming, configuration and Ethernet/ field
bus communication. The Ethernet ports serve as interface for programming, configuration and
Ethernet/ field bus communication. Two serial interfaces COM 0 and COM 1 are available for
connecting serial RS232 or RS485 devices. CANopen or SAE J1939 devices can be connected to
the TBEN-L...-PLC-... via the two CAN interfaces CANout and CANin. To connect digital sensors
and actuators, the device has eight digital I/O channels that can be used as inputs or outputs
without configuration. The USB device port is designed as a mini USB B socket and can be used
as a service interface for the device DTMs and as a programming interface for CODESYS. The
USB host port is designed as a USB2.0-A socket and is used to connect USB memory sticks for
program backup, program recovery, firmware update and data synchronization.

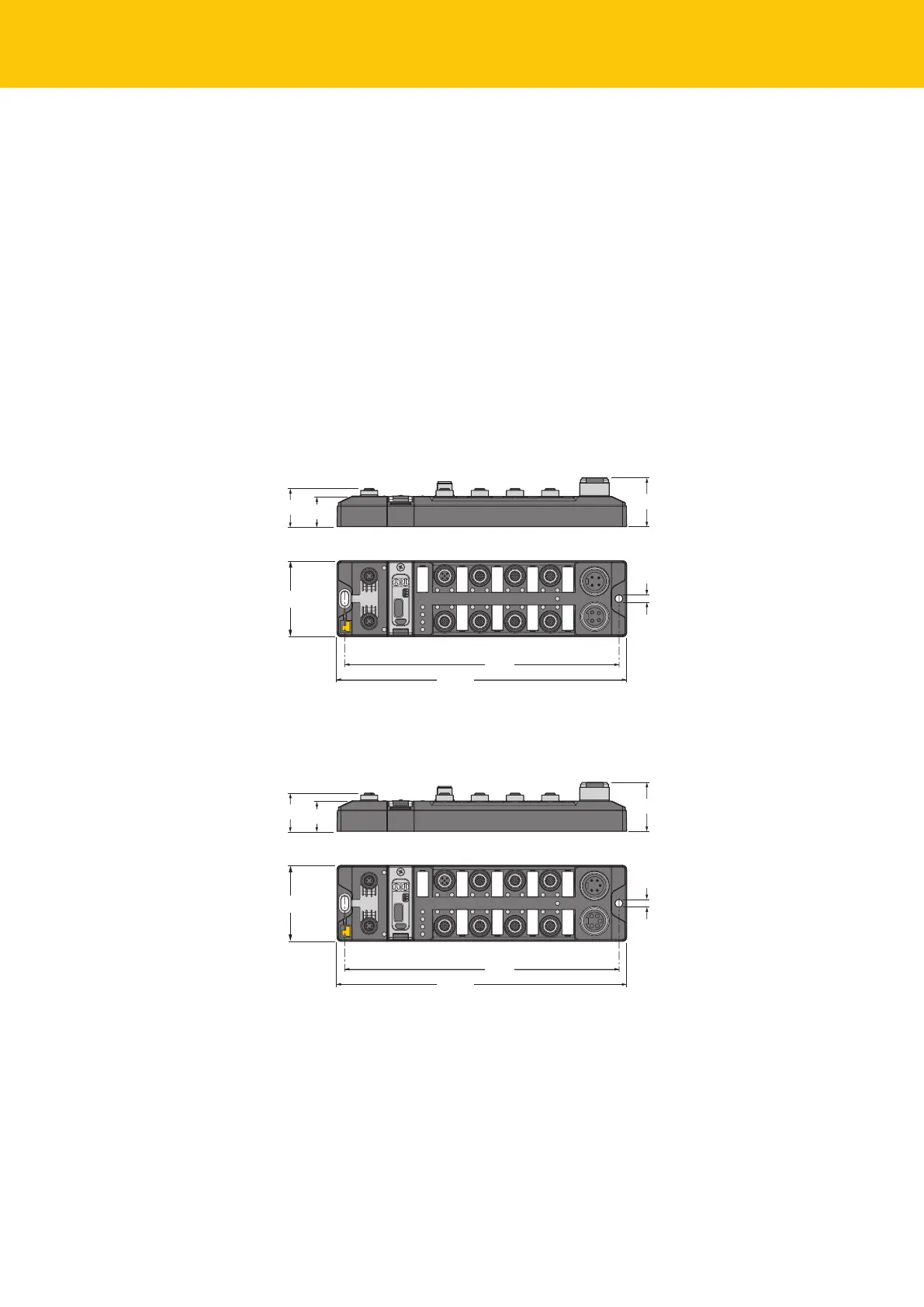

4.1 Device overview
218
230.5
C4C5C6C7
6.3
38.8
60.4
C0C1C2C3
24
30.2
X2
X1
P2
P1
Fig.1: TBEN-L4 –PLC-… – dimensions
218
230.5
C4C5C6C7
6.3
38.8
60.4
C0C1C2C3
24
30.2
X2
X1
P2
P1
Fig.2: TBEN-L5 –PLC-… – dimensions
