Commissioning
Setting the IP address
26
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com
7.1.2 Setting the Dual MAC Mode
The dual MAC mode can be activated via DIP switch no. 2 [DMM].
ü The device is connected via Ethernet port P1 (ETH1) to the PC on which the Turck Service
Tool is installed.
Open the cover over the switches.
Set DIP switch no. 2 [DMM] to 1.
a Execute a power reset.
a The device logs on e.g. in the Turck Service Tool to Ethernet port P1 under the IP address
previously used in Switch Mode. The IP address for the second Ethernet port P2 is set to
192.168.2.254 by default.
ATTENTION! If the cover over the rotary coding switches is open, protection class IP67 or
IP69K is not guaranteed. Damage to the device due to foreign material or liquids penet-
rating the device is possible. Tightly close the cover above the switches.
NOTE
The Turck Service Tool only detects the Ethernet port (P1 or P2) via which the TBEN-
L...-PLC-... is connected to the PC on which the Turck Service Tool is installed.
7.2 Setting the IP address
IP address in Switch mode
In the Switch Mode, the TBEN-L…-PLC-… has one IP address.
IP address in Dual MAC mode
In Dual MAC Mode, each Ethernet port of the device has one IP address. The IP address for Eth-
ernet port P1 can be set via two decimal rotary coding switches and DIP switches on the device,
via the web server or via the Turck Service Tool. The IP address for Ethernet port P2 can only be
set via the web server.
7.2.1 Setting the IP address via switches at the device
The IP address can be set via two decimal rotary coding switches and the DIP switch [Mode] on
the device. The switches are located under a cover together with the USB ports and the SET
button.
5
4
3
2
1
0
9
8
7
6
5
4
3
2
1
0
9
8
7
6
2 1
3
ON
SRV
USB Host
Set
Mode
DMM
x 10
x 1

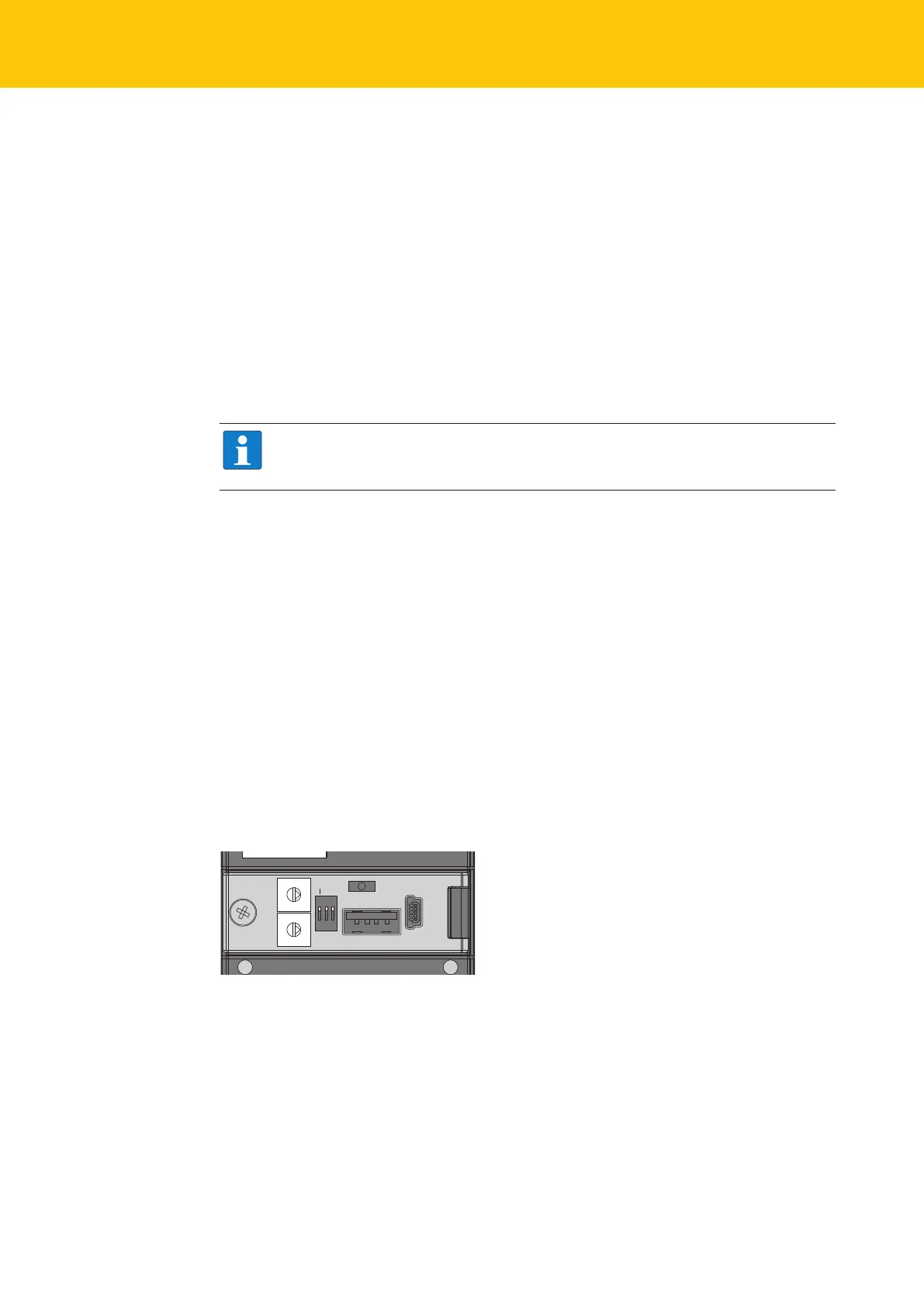

Fig.28: Switches for setting the IP address
Open the cover over the switches.
Set the rotary coding switch to the desired position according to the table below.
Set DIP switch [Mode] to the desired position according to the table below.
Execute a power cycle at the device
ATTENTION! If the cover over the rotary coding switches is open, protection class IP67 or
IP69K is not guaranteed. Damage to the device due to foreign material or liquids penet-
rating the device is possible. Tightly close the cover above the switches.
