Additionally to the PLC logic, the project contains:
n Five LEDs for free use in the program:
Each LED uses 2 bit in the process output data of the device. They are automatically
mapped to the output bits %QX8000.0 to X8001.1.
n Local_IO
– Configuration of the device's local I/Os and the VAUX functionality.
– Diagnostics of the local I/Os and module status
n Two serial interfaces (COM0 and COM1)
Connection of RS232 and RS485 devices
n One CAN interface (CANbus)
Using the device as CANopen device, CANopen manager or as SAE J1939 manager
7.3.3 Configuring the Network
Double clicking the entry Device (TBEN-Lx-PLC-1x) opens the Device tab.
Scan the network for TBEN-L…-PLC-10 via the Scan network… button and select the
device.

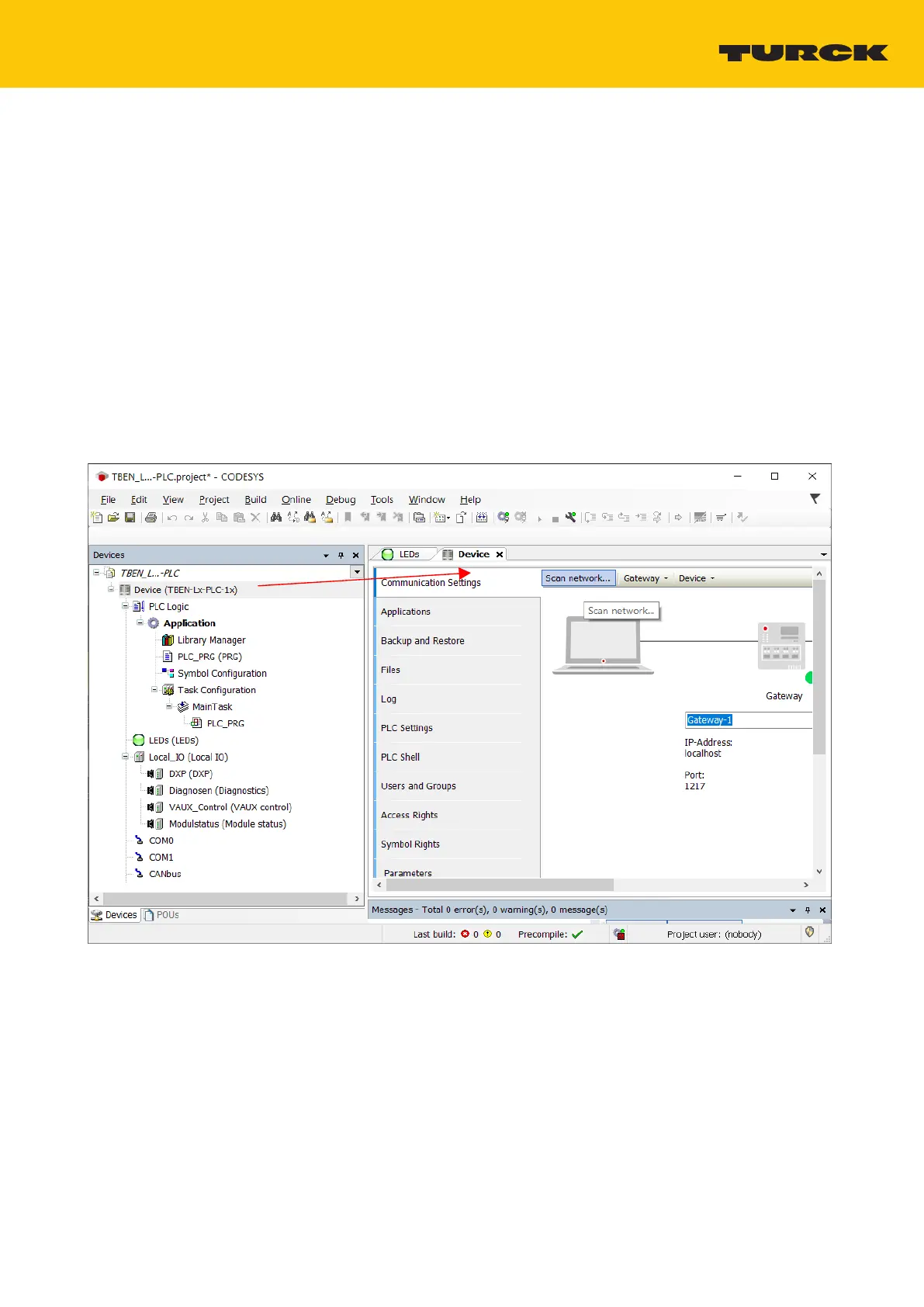

Fig.37: Scanning the network
