7.3.18 Displaying task and processor information
Displaying the average cycle time
The average cycle time for the task with the highest priority should not be higher than 80 % of
the cycle time set for this task.
In the following example the Profinet_IOTask has the highest priority, the cycle time is set to 1
ms:

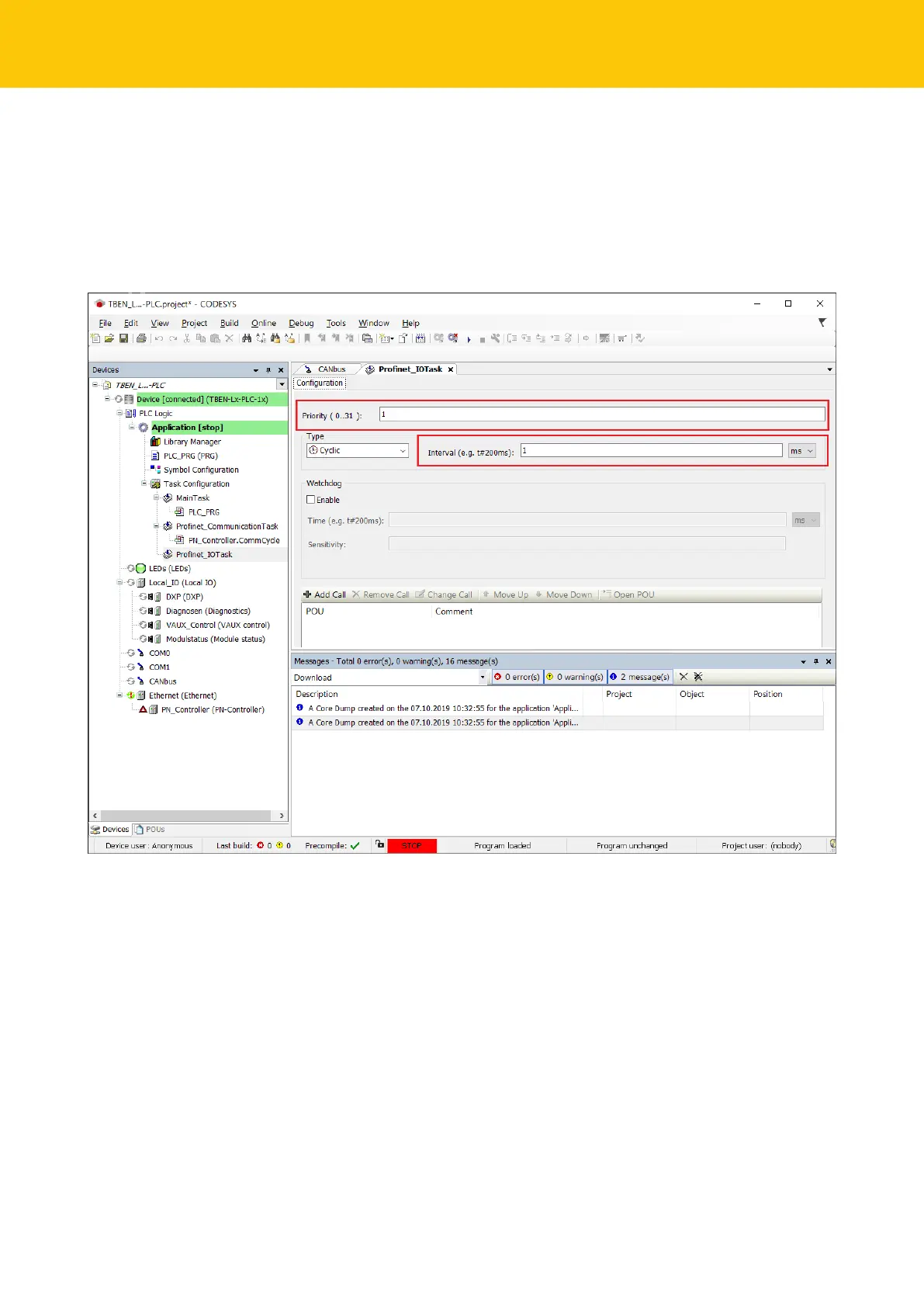

Fig.76: Profinet_IOTask, priority1, cycle time 1 ms
The maximum average cycle time recommended for the example is calculated as follows:
1 ms × 80 % = 800 μs.
An average cycle time of 800 µs should not be exceeded for this example.
The Average Cycle Time is shown in the register tab Monitor of the Task Configuration.
