turck TBEN-L Series Instructions For Use

V02.00 | 2019/11
25
7 Commissioning
7.1 Setting the Ethernet port mode (firmware version V1.4.6.0 or higher)
The Ethernet port mode is set via DIP switch no. 2 [DMM] under the cover at the device.
5
4
3
2
1
0
9
8
7
6
5
4
3
2
1
0
9
8
7
6
2 1
3
ON
SRV
USB Host
Set
Mode DMM
x 10
x 1

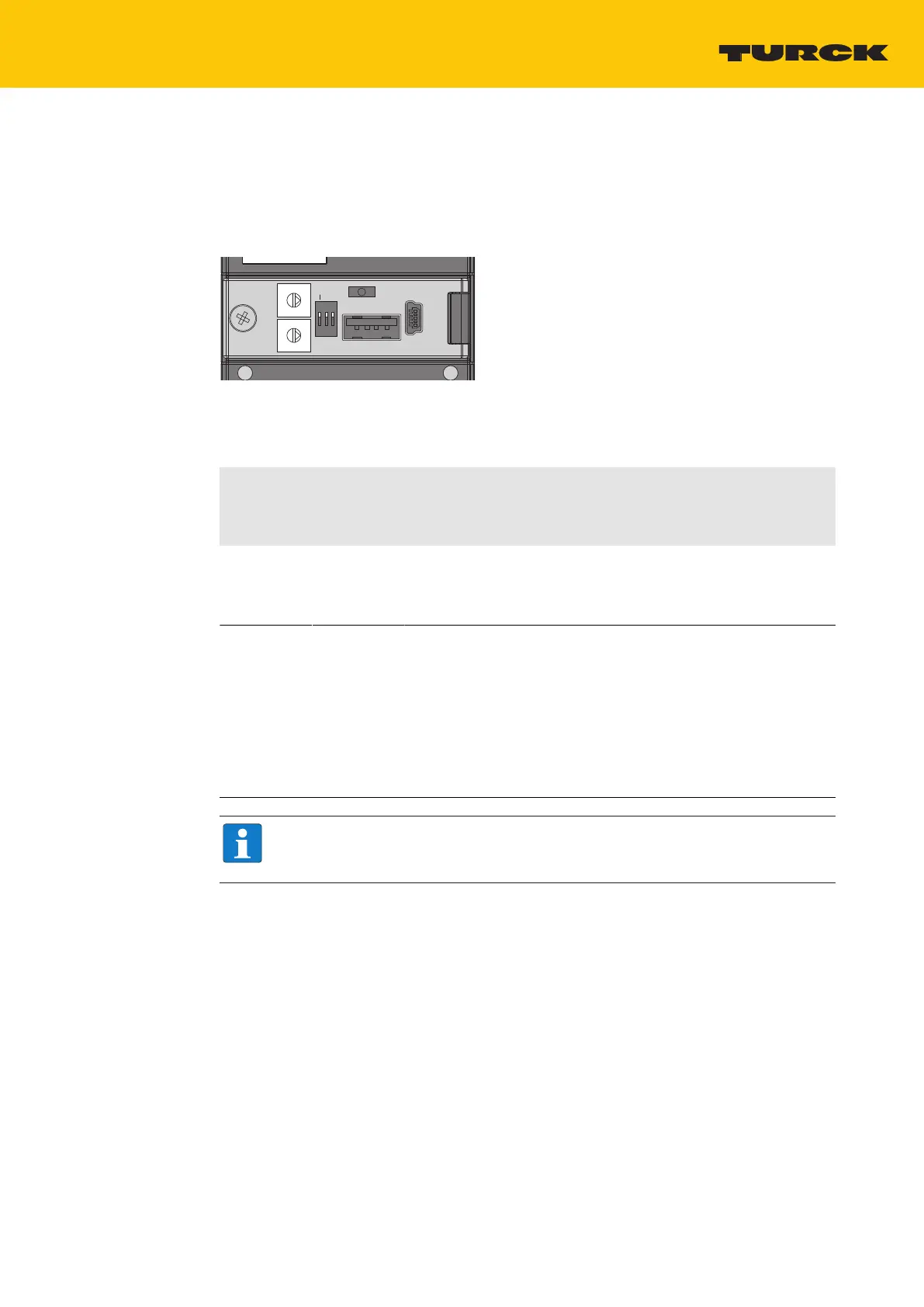

Fig.27: Switch for setting the Ethernet port mode
It is not possible to change the Ethernet port mode during operation, since the change only be-
comes effective after a voltage reset.
Position
DIP switch
no. 2
DMM
Ethernet port
mode
Meaning
0 Switch Mode In switch mode, the two Ethernet ports of the TBEN-L...-PLC-... are
treated as autocrossing switch with one IP and one MAC address.
The IP address is set as described under ”Setting the IP Ad-
dress” [}26].
1 Dual MAC
Mode
In Dual MAC mode, the two Ethernet ports of the TBEN-L...-PLC-...
are treated as Ethernet ports with separate IP and MAC addresses.
The TBEN-L…-PLC-… can be a participant in two different Ether-
net networks in Dual MAC mode.
In Dual MAC Mode the IP address at Ethernet port P1 is set as de-
scribed under ”Setting the IP Address” [}26]. The IP address of
Ethernet port P2 is set via the web server or via a DHCP server in
the network to which the TBEN-L...-PLC-... is connected via Ether-
net port P2
NOTE
Devices with a firmware version lower than V1.4.6.0 can only be operated in switch
mode.
7.1.1 Setting the Switch Mode
 Open the cover over the switches.
 Set DIP switch no. 2 [DMM] to 0.
a Execute a power reset.
 ATTENTION! If the cover over the rotary coding switches is open, protection class IP67 or
IP69K is not guaranteed. Damage to the device due to foreign material or liquids penet-
rating the device is possible. Tightly close the cover above the switches.
