Commissioning
Put master/slave functions into operation in CODESYS
52
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com

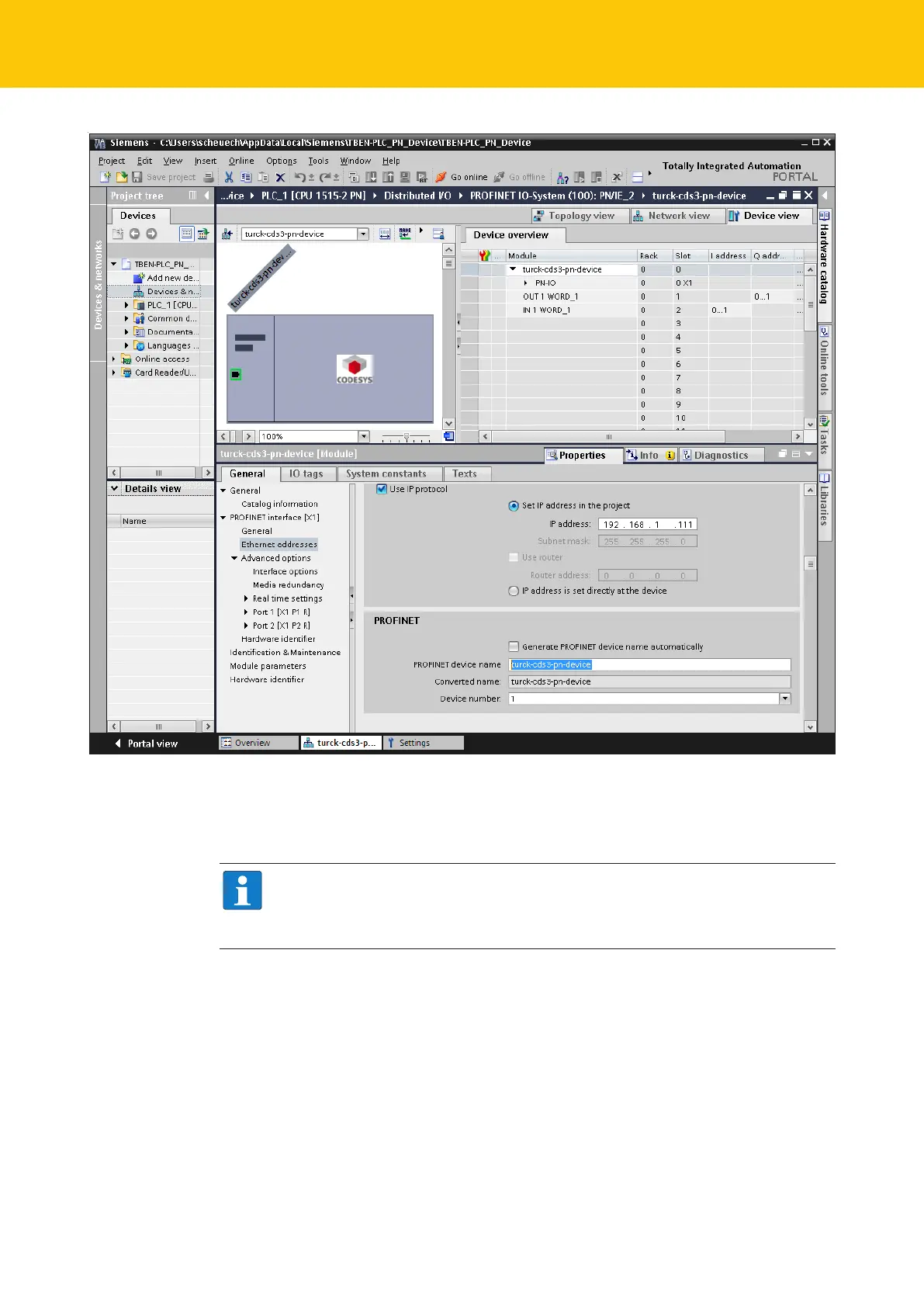

Fig.56: Settings PROFINET-interface (CDS3 PN Device)
Configuring the in- and output data
Configure the in- and output data, which have to be exchanged with the CODESYS-
device.
NOTE
The configuration of the data in TIA Portal has to be done in reverse order compared
to the configuration in CODESYS. Input data in TIA Portal are output-data in
CODESYS, and vice versa. The configured data widths must match.
