7.3.13 Commissioning TBEN-L...-PLC-... as EtherNet/IP™ Slave (Device)
NOTE
In Dual MAC mode, the PROFINET Device function is only available on Ethernet port
P1 (eth0 in CODESYS).
Properties
max. number of I/O data 496 byte IN
492 byte IN
Configuring an EtherNet/IP™ device
ü The Ethernet interface eth0 is configured.
ü The Ethernet IP Slave from Turck is used.
Add the EtherNet/IP™ device to the Ethernet interface using the Add Device function.
Configure the in- and output data lengths which have to be exchanged with the higher-
level PLC.

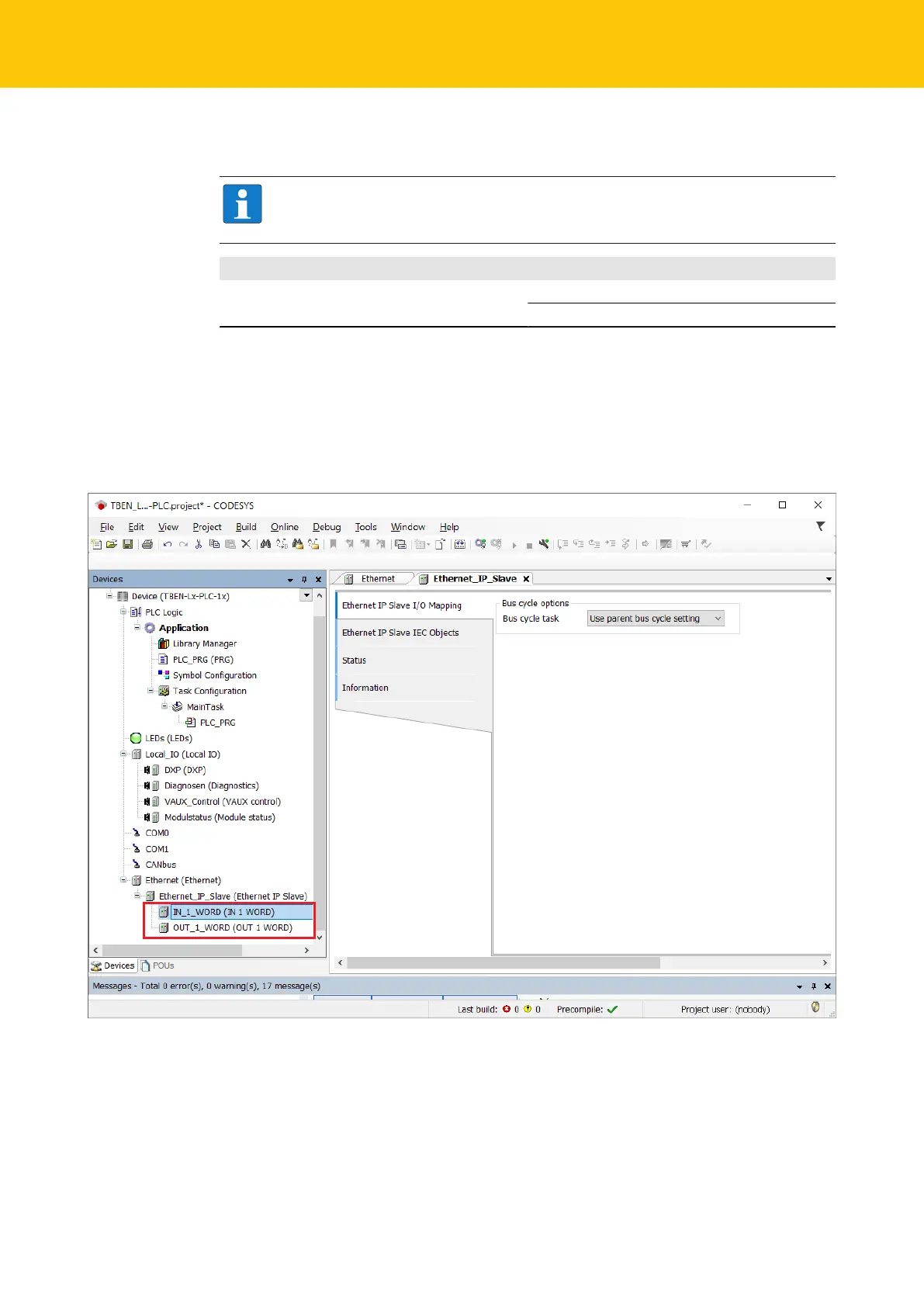

Fig.62: Configuring an EtherNet/IP™ device
