7.3.11 Commissioning TBEN-L...-PLC-... in parallel as PROFINET controller and device
If the device is used simultaneously as both a PROFINET controller and a PROFINET device, a
second Ethernet interface must be added to the device. The assignment of the Ethernet ports
in CODESYS is as follows:
Ethernet port Function
eth0 PROFINET Device
eth1 PROFINET Controller
Configuring the PROFINET Controller
ü The Ethernet interface eth1 is configured as described under "Configuring the Ethernet in-
terfaces" [}35].
ü The PN Controller from 3S – Smart Software Solutions GmbH is used.
Add the PN Controller to the Ethernet interface eth1 using the Add Device function.

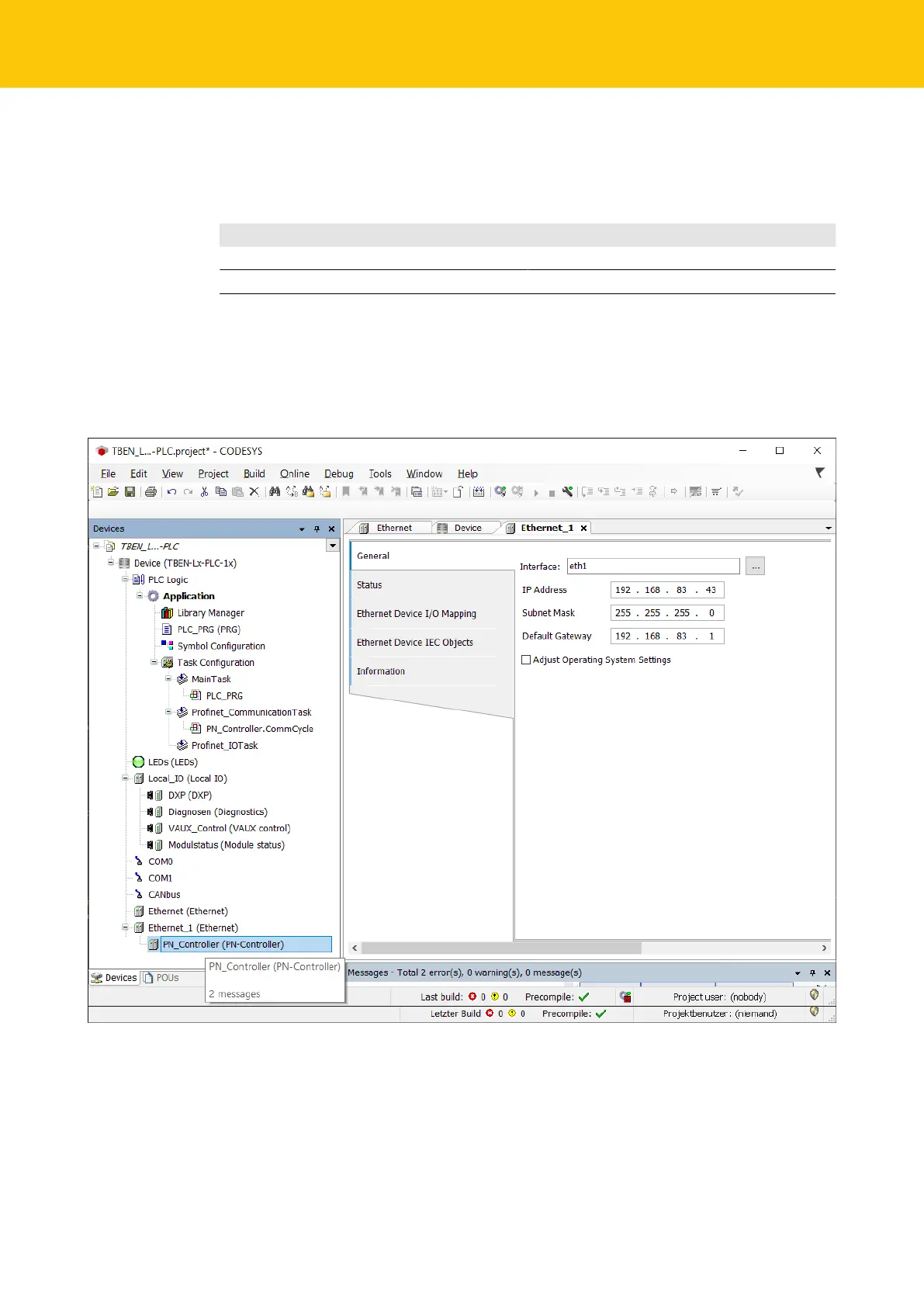

Fig.58: Adding the PN Controller to eth1
