Commissioning
Put master/slave functions into operation in CODESYS
36
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com
Configure the Ethernet interface
Select eth0 or eth1 under Network adapters.
a The IP address is set automatically.

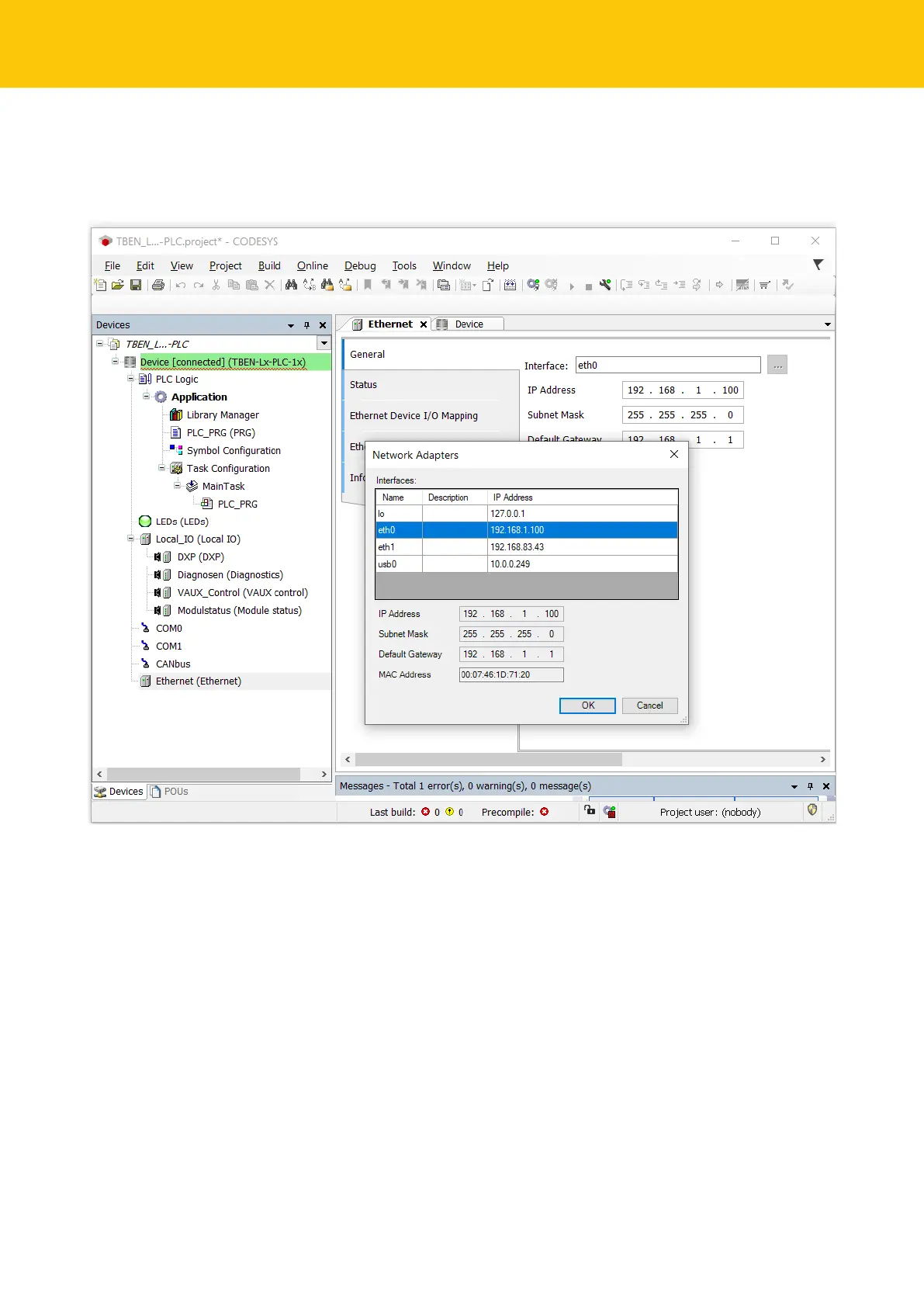

Fig.40: Configuring the Ethernet interface
a The Ethernet interface is added to the project tree.
n TBEN-L…-PLC-… in Switch Mode [}25]:
IP address of eth0 = IP address of TBEN-L…-PLC-…
n TBEN-L…-PLC-… i Dual MAC Mode [}26]:
– IP address of eth0 = IP address of Ethernet port P1
– IP address of eth1 = IP address of Ethernet port P2
