Commissioning
Put master/slave functions into operation in CODESYS
40
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com
Add slave channels for the communication with the Modbus slave.
Observe the process data offsets of the slave. In the following example the slave's process
output data start with register 0x0800.

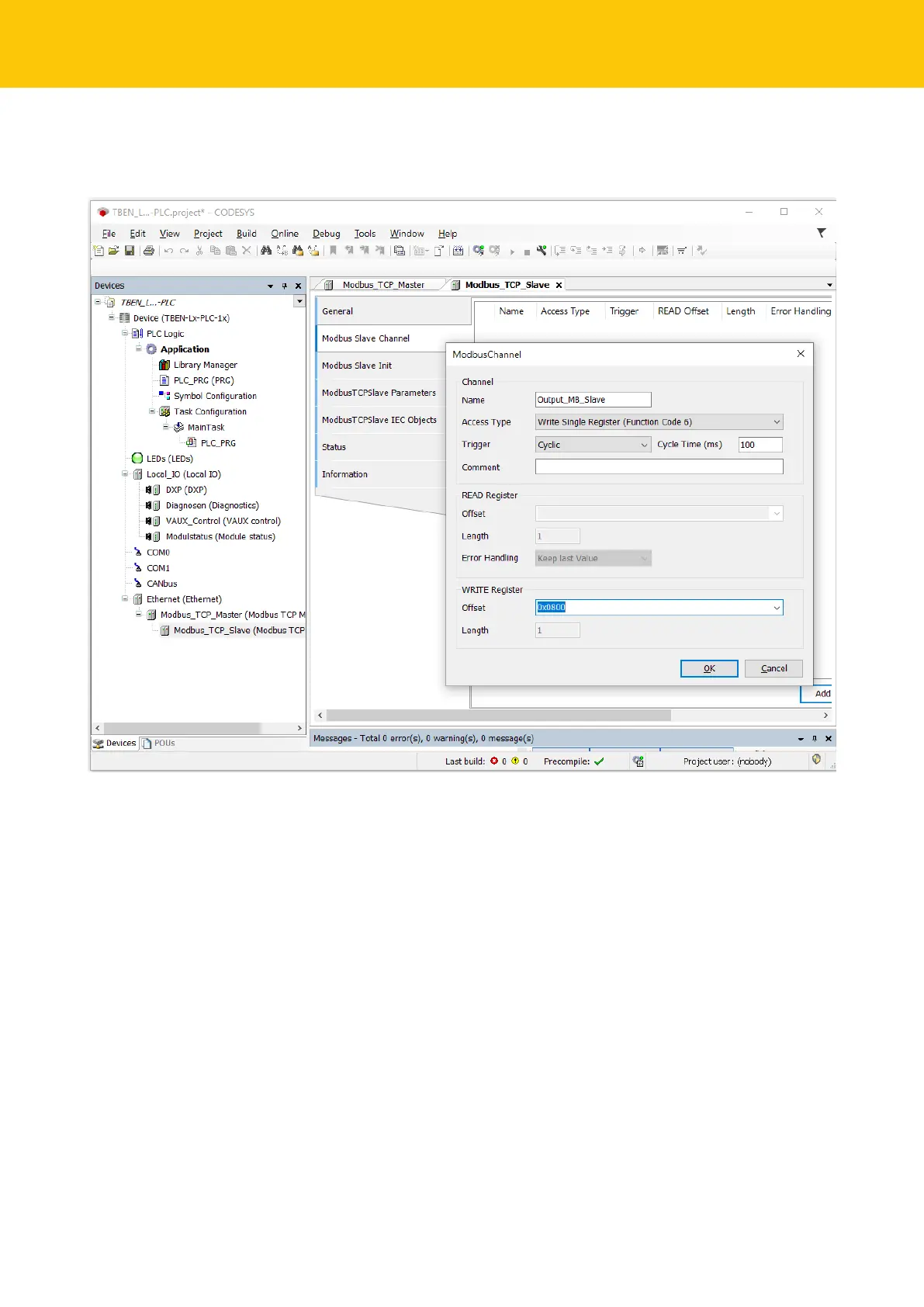

Fig.44: Adding Modbus slave channels
