Commissioning
Put master/slave functions into operation in CODESYS
60
Hans Turck GmbH & Co. KG | T +49 208 4952-0 | F +49 208 4952-264 | more@turck.com | www.turck.com
Configuring the EtherNet/IP™ device in EtherNet/IP™ Scanner
The following example describes the configuration of the EtherNet/IP™ device in Rockwell
RSLogix5000 V20.01.
The EtherNet/IP™ device is configured as standard EtherNet/IP™ device (Communications Ad-
apter) in RSLogix.
Hardware in the example:
n Controller: Logix 5572™ (Allen Bradley)
n EtherNet/IP™-Bridge 1756EN2TR (Allen Bradley)
n TBEN-L…-PLC-…
Installing the EDS file
 Install the device's EDS file (Turck CDS3.eds) in the configuration software. It can be
downloaded fromwww.turck.com
a The device is added as CDS 3 Ethernet/IP Slave to the device catalog in RSLogix.

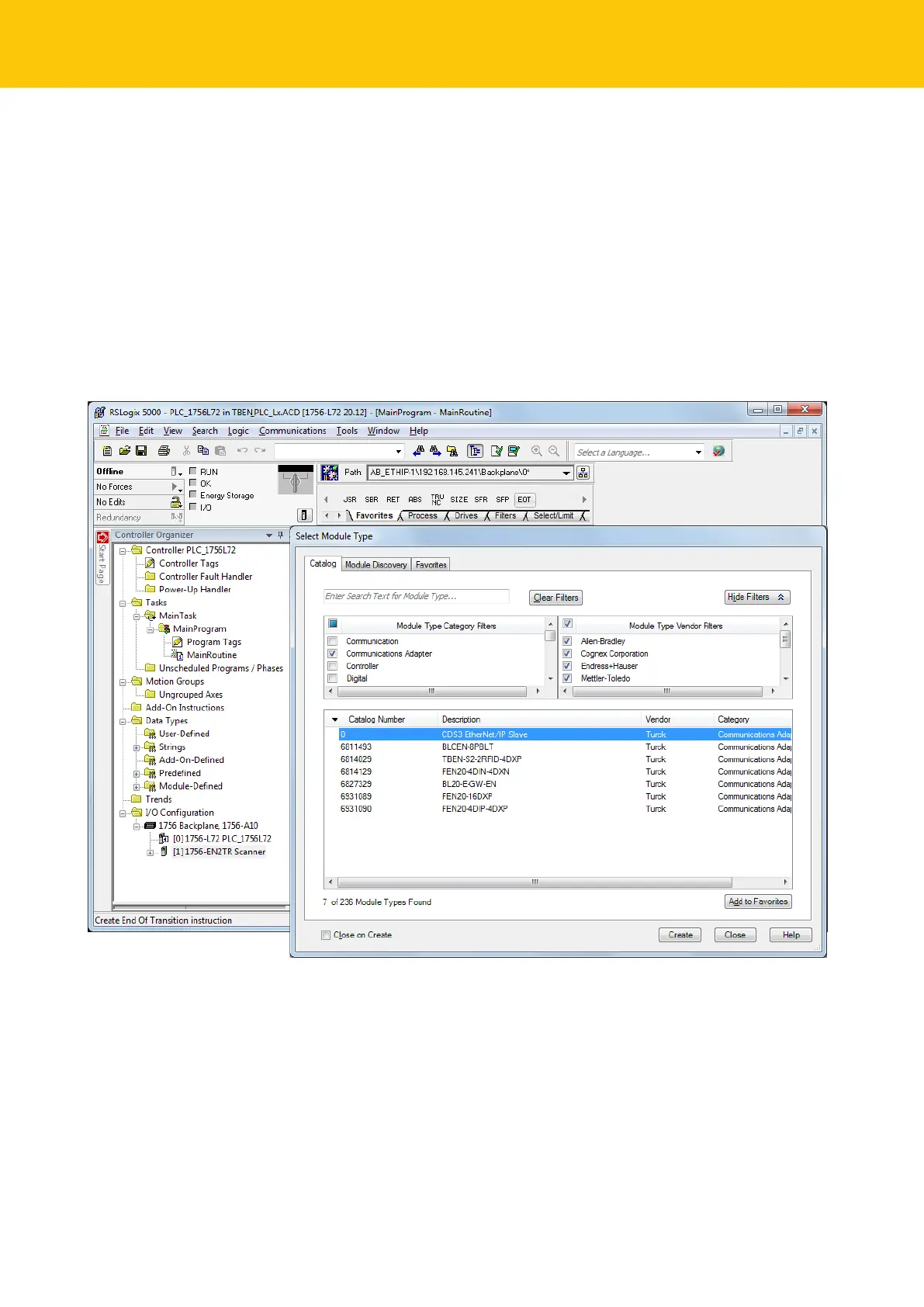

Fig.64: RSLogix5000: Device catalog with EtherNet/IP Slave CDS 3
