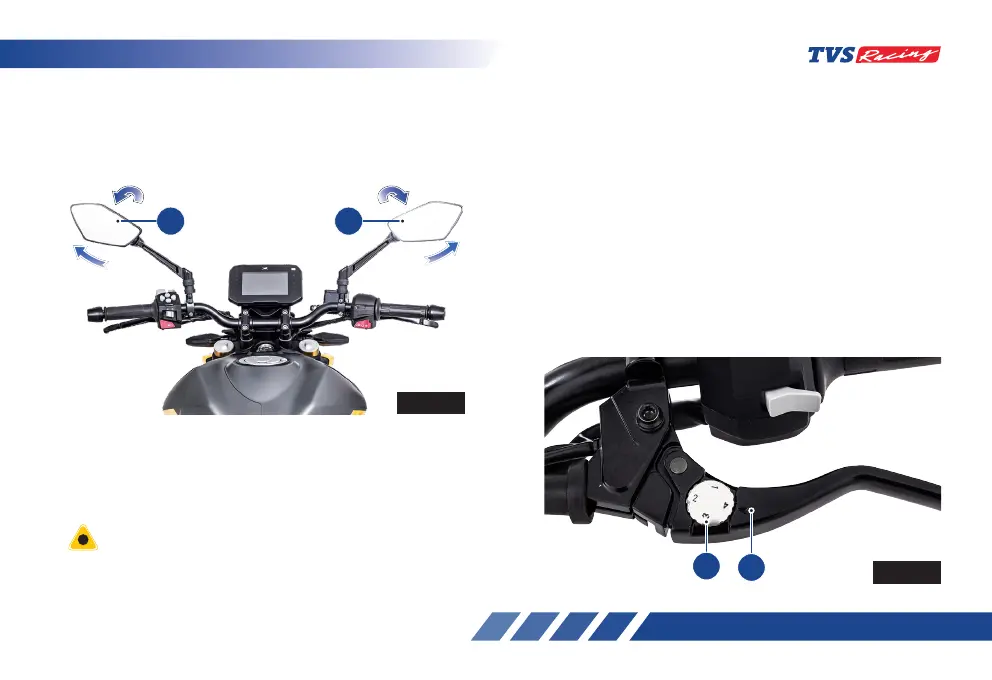

Rear View Mirrors LH & RH (ref. Fig. 37)
Adjustable rear view mirrors (LH & RH) are provided
with your bike. These mirrors can be adjusted to your
convenience by following the procedure given below:
Clutch Lever - Adjustment (ref. Fig. 38)
TVS Apache RTR 310 comes with an adjustable
clutch lever. There are four positions provided for you
to adjust the lever to suit your palm size.
The lever can be adjusted by adjusting the position
adjuster (A) provided in the lever itself. ‘Position - 1’
is the closest position of the lever to handle bar grip
and ‘Position - 4’ is the farthest.
To adjust the lever position, push the lever forward
and rotate the position adjuster to any of the four
positions by aligning the ‘arrow mark’ (B) on the lever
to the number provided on the adjuster.
• Tilt the mirror portion (A) till the clear vision is
obtained (forward or backward / up or down).
Never try to adjust the mirror too much forward or
backward as this could break the mirror.
Caution
AA
GENERAL ADJUSTMENTS
Fig. 37
B
A
Fig. 38
