142
A
B
Fig. 39
A
2
3
1
Fig. 40

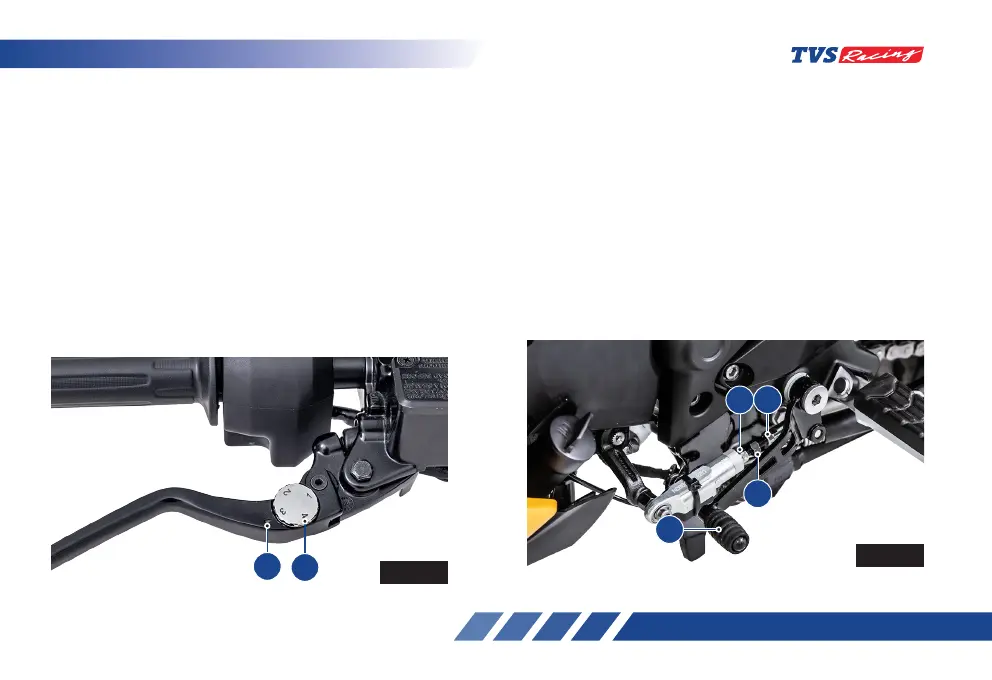

Front Brake Lever - Adjustment (ref. Fig. 39)
TVS Apache RTR 310 comes with an adjustable front
brake lever. There are four positions provided for you
to adjust the lever to suit your palm size.
The lever can be adjusted by adjusting the position
adjuster (A) provided in the lever itself. ‘Position - 1’
is the closest position of the lever to handle bar grip
and ‘Position - 4’ is the farthest.
To adjust the lever position, push the lever forward
and rotate the position adjuster to any of the four
positions by aligning the ‘arrow mark’ (B) on the lever
to the number provided on the adjuster.
Gear Shift Pedal - Adjustment (ref. Fig. 40)
The position of the gear shift pedal (A) in relation
to the foot rest can be adjusted to suit the rider’s
requirement.
To adjust the gear shift pedal position:
• Using an open end spanner hold the gear shift
pedal link rod (1) on the flat surface of the rod.
• Using another open end spanner completely
loosen the lock nuts (2 & 3).
• Now, turn the gear shift pedal link rod (1) ‘in’ or
‘out’ until the desired pedal position is set.
