Fuses
The electrical components of your motorcycle are
protected by six fuses housed inside a fuse box and
located below the rider seat.
To access the fuses, park the motorcycle on a flat and
firm surface and remove the pillion and rider seats as
explained in page 127. A fuse puller (A) is placed on
the battery holder can be used to pull out the fuse
from the fuse box during replacement.
Removal and replacement
• Turn ‘OFF’ the ignition.

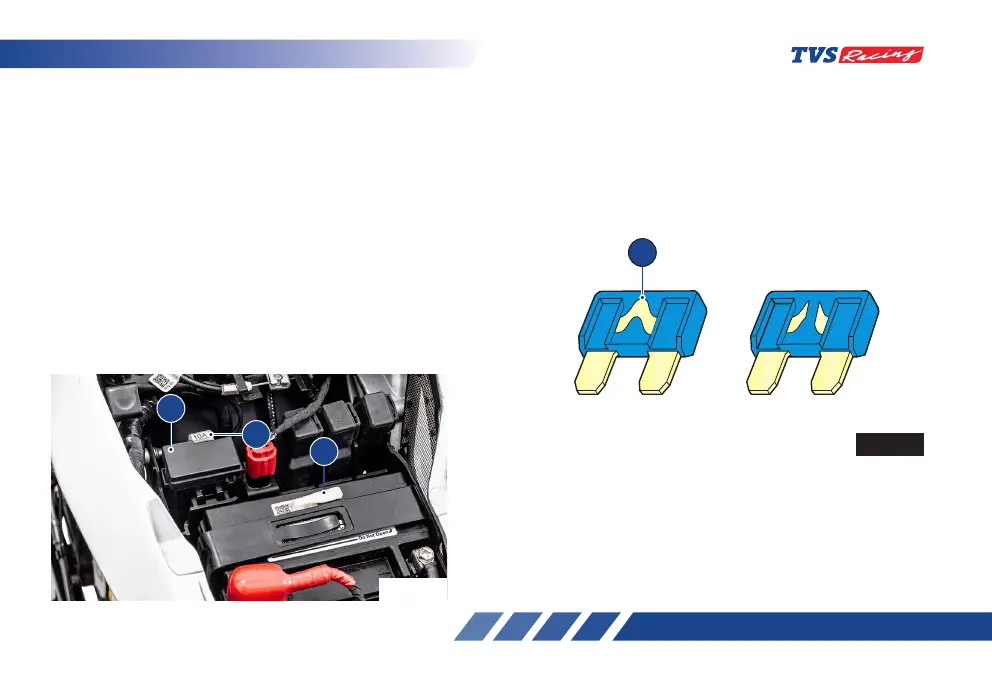

• Press the lock and open the fuse box cover (1)
(ref. Fig. 77).
• Pull out the defective fuse and re-fix the new one
with same rating.
• Close the fuse box cover and ensure the proper
locking.
• You can identify a blown fuse by the interrupted
centre link (1) (ref. Fig. 78).
Fuse assignments
• Each fuse inside the fuse box are assigned for
different electrical load and it is listed the table
given below. Never change the fuse rating to
protect your electrical system and to avoid severe
damages.
GOOD FUSE BLOWN FUSE
1
Fig. 78
A
1
2
Fig. 77
