* The specification for headlamp beam adjustment is
applicable only for India. Owner’s of other countries are
advised to adopt the local rules and regulations.

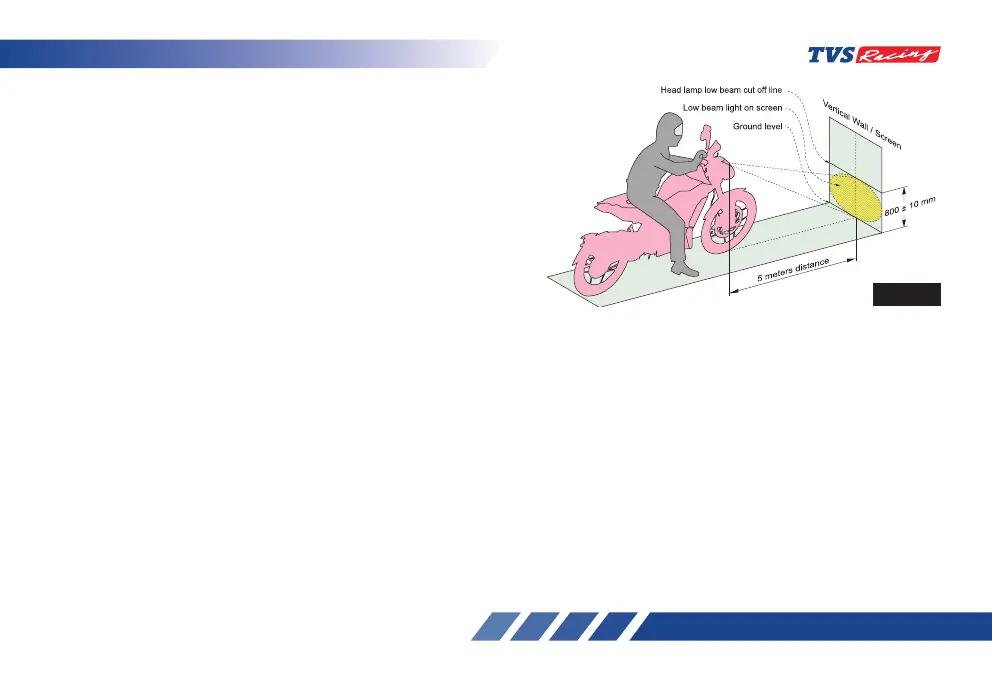

Fig. 48
Headlamp Aiming
To check and adjust the headlamp focus:
• Inflate the tyres to the correct pressure.
• Place the motorcycle upright in a uniform flat
surface while ensuring the headlamp center is
5 meter away from a vertical wall or screen (ref.
Fig. 48).
• Mark a horizontal line on the wall or screen
around 800 ± 10 mm from the ground level and
mark a vertical line in the middle of the horizontal
line (ref. Fig. 48).
• Sit on the vehicle to check the headlamp focus
after completing the above procedure.
• Start the vehicle and turn the headlamp to ‘high
beam’ mode.
• Rotate the handle bar left / right side and focus
the headlamp on the vertical line of the wall /
screen.
• Now, turn the headlamp to low beam mode
and ensure the headlamp low beam focus falls
between 800 ± 10 mm from the ground level as
shown (ref. Fig. 48).
Incase if any deviation is found, adjust the headlamp
focus as explained below:
