176
Always have these tightening torques to be checked
at TVS Motor Company Authorised Main Dealer after
assembly for safety.
• Mount the front wheel stand again and install
the locking screw (3) with specified torque (ref.
Fig. 66).
Tightening torque 50 ± 7 Nm
• Install the clamping screws (1, 2, 4 & 5) and
tighten to the specified torque (ref. Fig. 65 & 66).
Tightening torque 19 ± 3 Nm
• Assemble the speed sensor (7) and its mounting
screw (6) (ref. Fig. 66).
Rear Wheel
Ensure the safety precautions listed in the page
160 are followed properly.
Removal
• Carefully place the motorcycle in auxiliary stand
(paddock stand refer page 192) or centre stand
(if available).
• Place a support below the rear wheel to avoid
falling of wheel after removing the quick release
axle.

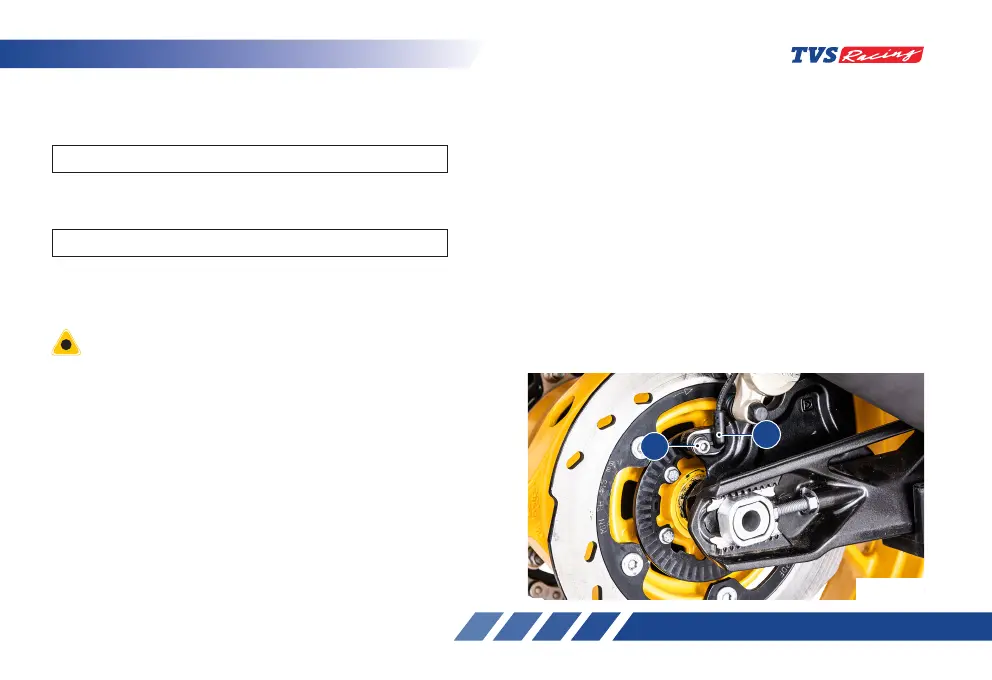

• Remove the mounting screw (1) from the speed
sensor mounting and carefully take out the speed
sensor (2) (ref. Fig. 69).
1
2
Fig. 69
