Auxiliary Stand (Paddock Stand)
Front wheel stand
Place the motorcycle on its centre stand (if applicable)
or on rear wheel stand (refer page 193) on a flat firm
surface.
• Use the auxiliary stand supplied for lifting the
front wheel (the stand is an accessory and it is
available with the TVS Motor Company Authorised
Main Dealer).

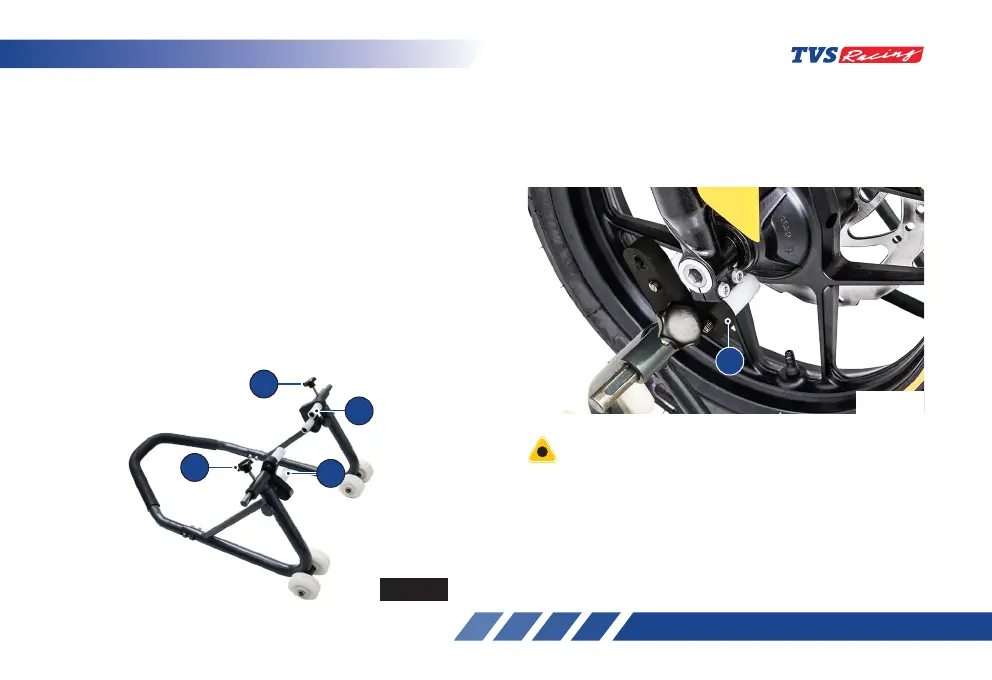

• Loosen the clamping screws (1) of the stand
adopters (ref. Fig. 84).
• Move away the adopters (2 & 3) in such way that
the front forks fit between them.
• Centre the stand relative to the front wheel and
push it against the front axle.
• Align the two adapters (2a & 3a) so that the front
forks are securely seated (ref. Fig. 85 & 86).
2
1
1
3
Fig. 84
Centre stand (if available in the vehicle and parked using
it) retracts if the motorcycle is lifted too high.
When raising the motorcycle, make sure that the centre
stand (if available in the vehicle and parked using it)
remains on the ground. Else the motorcycle is supported
by the rear wheel stand to avoid falling of the motorcycle.
