TVS Apacha RTR 310 - Instrument Cluster; Switch Assembly LH

24
Switch Assembly LH
Switch assembly LH is located in the handle bar at LH
side and has the following switches in it.
A) Switch beam control / pass-by (ref. Fig. 10)
Headlamp low beam glows automatically when
the ignition turned ‘ON’ and the DRL is in ‘OFF’
condition. Depending on the selection of High /
Low beam switch position, headlamp will operate in
corresponding beam.
• Press the switch towards ‘ ’ to illuminate low
beam.
• Press the switch towards ‘ ’ to illuminate high
beam.
- When the headlamp is illuminated in high
beam, the high beam indicator of the
instrument cluster ‘ ’ glows along with it.
• Press the switch intermittently towards you to
flash the headlamp (pass-by).
- Flashing the headlamp high beam provides
signal to the vehicles coming from opposite
direction during overtakes.
- If the high beam is flashed, the high beam
indicator also flashes along with it.
Use appropriate headlamp beam ‘high / low’ as per
the traffic and road conditions for your safety and avoid
inconvenience to other riders.
Warning
A

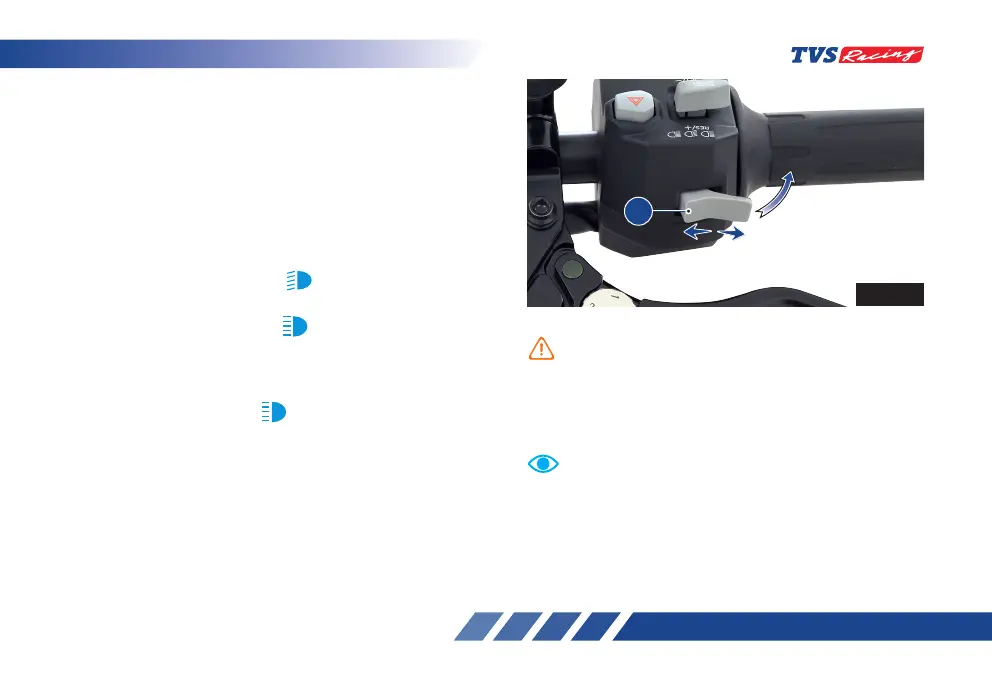

Fig. 10
Pass by works only when the beam control switch is in
‘Low’ beam position.
Similarly, DRL mode works only when switch is in ‘Low’
beam position.
Note
