Clutch Free Play
Ensure the safety precautions listed in the page
160 are followed properly.
Clutch free play adjustment may be required if the
motorcycle gets ‘OFF’ while shifting from neutral to
gear or tends to creep; or if the clutch slips (vehicle
acceleration lags behind the engine rpm).
Minor clutch free play adjustment can be done by
means of clutch cable adjuster at the clutch lever end.

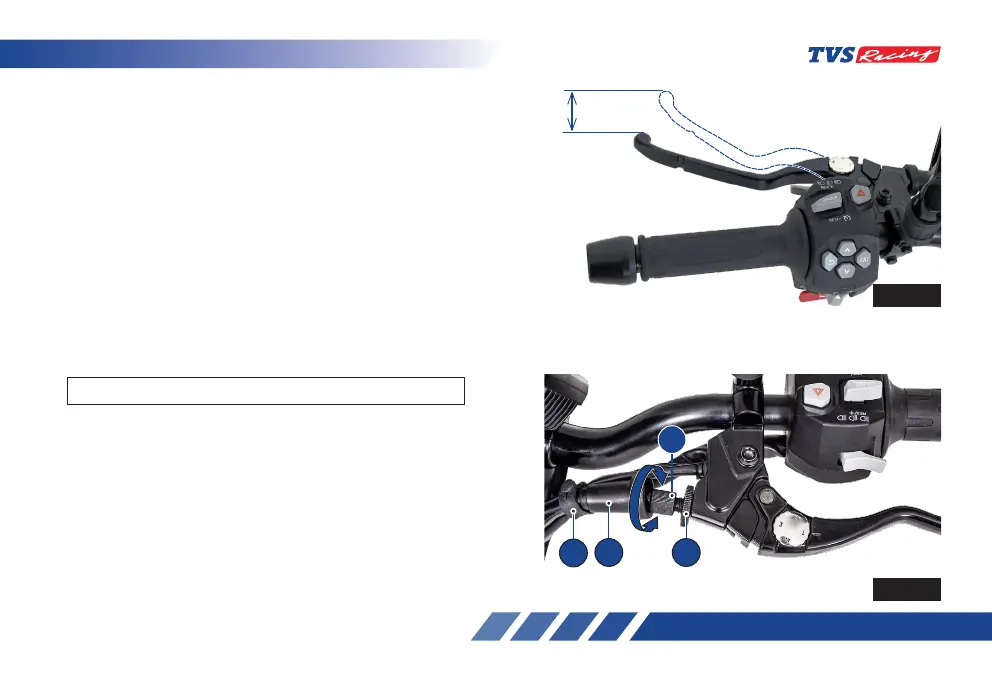

• Measure the clutch free play (A) at the lever end
as shown (ref. Fig 52).
- If the measured free play is ‘more’ or ‘less’
than the standard limit given below:
Clutch lever free play 8 to 12 mm
• Remove the cable clamp (1). Pull back the dust
cover (2) of clutch lever (ref. Fig. 53).
• Loosen the lock nut (3) and turn the adjuster
(4) ‘in’ or ‘out’ till the specified play is obtained
(ref. Fig. 53).
- After the adjustment, once again check the
free play and confirm.
A
Fig. 52
32
1
4
Fig. 53
