• Adjust the mirror to suitable position and tighten
the lock nut using a open end spanner 14 mm
from the tool kit (refer page 191).
Tightening torque 29 ± 6 Nm
Diagnostic Connector
The diagnostic connector is located below the rider
seat. Follow the procedure given below to access the
connector.
Removal
• Park the motorcycle on a flat and firm surface and
remove the pillion and rider seats as explained in
page 127.
• Turn ‘OFF’ the ignition.
• Gently pull out connector along with its cap from

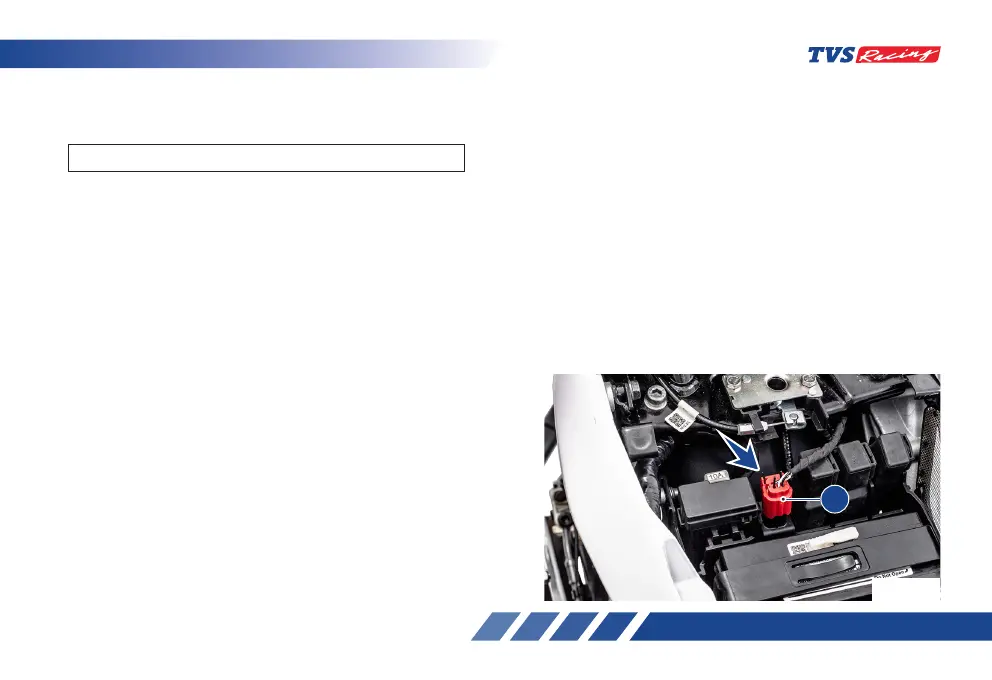

its location by releasing the lock (A) (ref. Fig. 82).
• Release the lock of the cap and take out the cap
carefully.
A
Fig. 82
