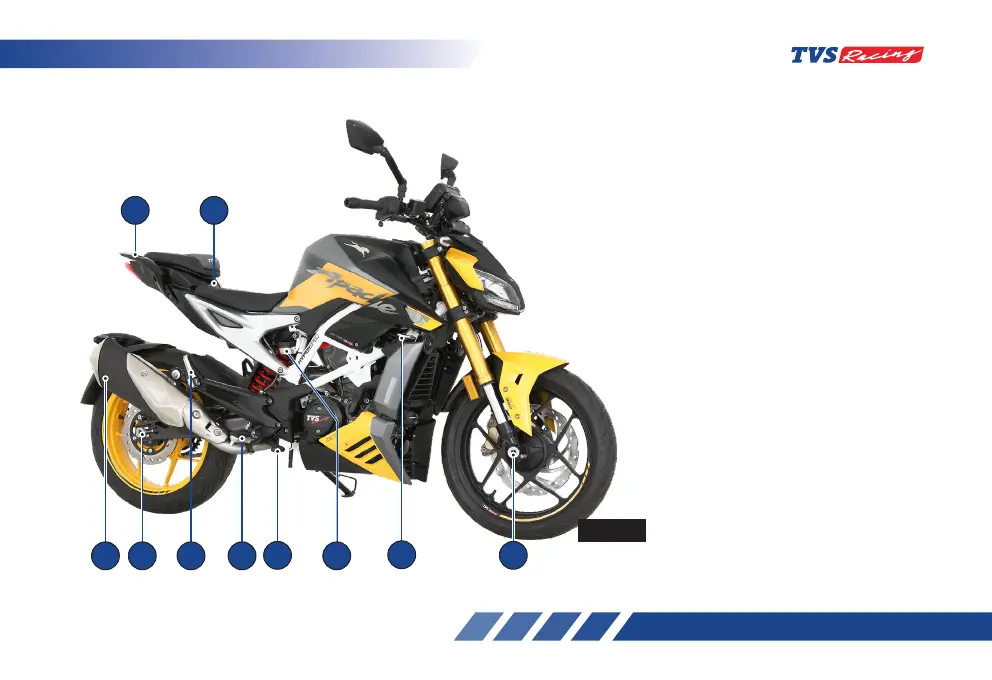

Location of Parts - Vehicle RH Side View (Ref. Fig. 01)
1) Front wheel axle
2) Radiator cap
3) Reservoir, rear brake fluid
(ref. page 165)
4) Rear brake pedal
(ref. page 37)
5) Rider foot rest RH
6) Pillion foot rest assembly RH
7) Rear wheel axle
8) Muffler assembly
9) Pillion handle
10) Seat lock (ref. page 127)
10
3
2
1
Fig. 01
9
7
8 6 5
4
