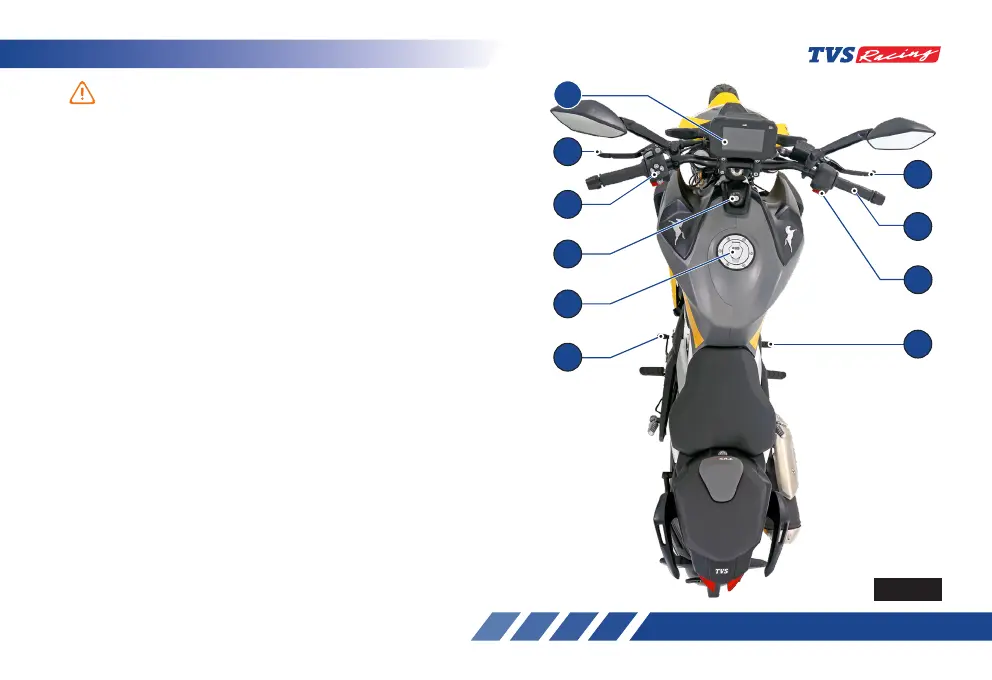

Controls (ref. Fig. 05)
1. Instrument cluster (ref. page 41)
2. Clutch lever (ref. page 33)
3. Switch assembly LH (ref. page 24)
4. Ignition cum steering lock (ref. page 23)
5. Fuel tank cap (ref. page 123)
6. Gear shift pedal (ref. page 34)
7. Rear brake pedal (ref. page 37)
8. Switch assembly RH (ref. page 38)
9. Throttle twist grip (ref. page 39)
10. Front brake lever (ref. page 40)
This section shows the position and function of the
controls used to ride your motorcycle. Read this section
carefully before riding the motorcycle.
2
7
8
Fig. 05
1
3
4
5
6
9
10
