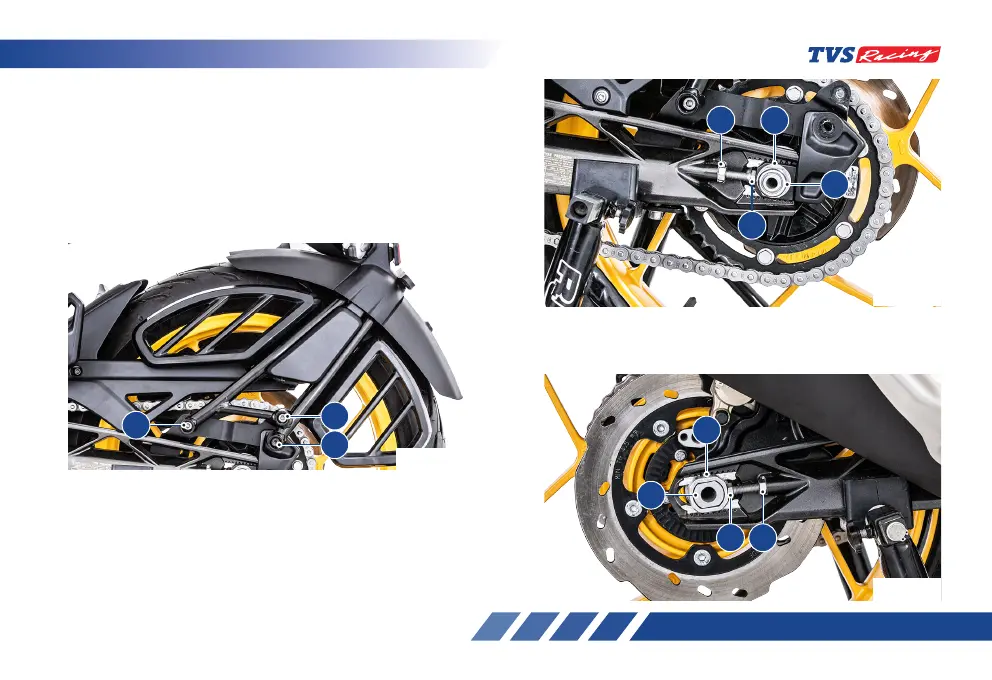

• Remove the rear mounting screws (A & B) of rear
wheel hugger (ref. Fig 70).
• Slightly loosen the front mounting screw (C) of
rear wheel hugger (ref. Fig 70).
• Tilt the rear wheel hugger upwards and retighten
the front mounting screw (C) of rear wheel
hugger.
4
8
6
5
9
10
3
7
Fig. 71
Fig. 72
• Remove the axle mounting nut (3) (ref. Fig 71)
using the proper tool from the tool kit (refer page
191).
• Release the lock nuts (4 & 5) and screw-in the
adjuster bolts (6 & 7) (ref. Fig. 71 & 72).
Fig. 70
A
C
B
• Remove the chain tensioner and push the quick-
release axle (10) to the right as much as possible
(ref. Fig 72).
