• Slightly loosen the top mounting bolts (A) on both
sides of the headlamp (ref. Fig. 49).
• In similar manner, loosen the bottom mounting
bolts (B) on both sides of the headlamp.
• Now tilt the headlamp ‘up’ or ‘down’ so that the
focus of the headlamp falls below the low beam
cut-off line (800 ± 10 mm) marked on the vertical
wall or screen.
• After adjusting the focus, tighten the top and
bottom mounting bolts to the specified torque.
Tightening torque 7 ± 1 mm
Do not stare at LED headlamp beam to avoid damage
to the eyes.
Headlamp focus should be adjusted only when the
headlamp is in low beam.
The adjustment levels mentioned is for solo riding
condition. For dual riding condition, the headlamp beam
may be adjusted as per need for better visibility.
A
B

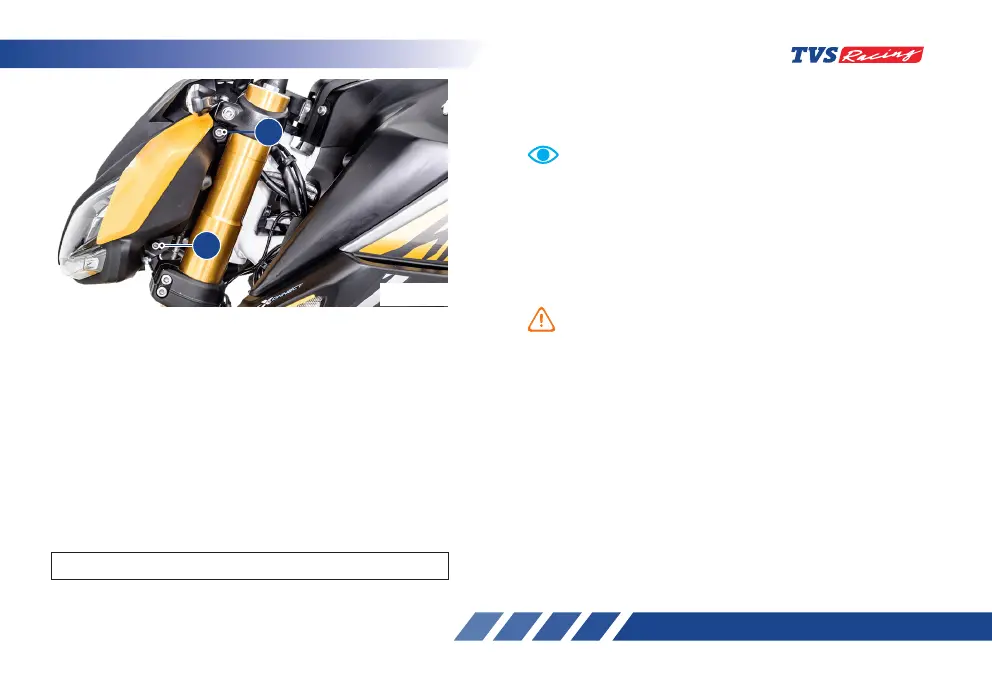

Fig. 49
• Once again check and confirm the headlamp
focus.
