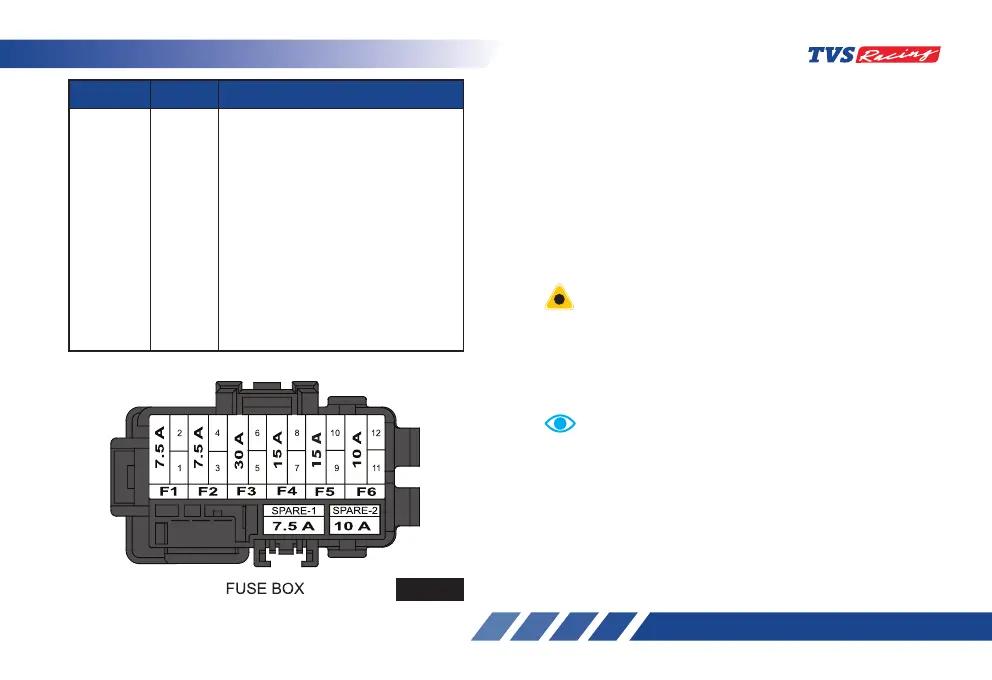

Fuse arrangement
• Fuses are arranged inside fuse box as given in the
figure (ref. Fig. 79). Ensure to fix the right rating
fuse at right location.
• An additional 10A HECU protection fuse (2) is
provided out side the fuse box as shown in the
figure (ref. Fig. 77). Ensure to check this fuse
incase if any HECU related electrical issue is
found in the system.
Fuse Colour Electrical load
F1 - 7.5A Brown Lambda / purge valve / ECU /
REL coils / injector / ignition coil
/ main relay / speedo
F2 - 7.5A Brown Fan radiator
F3 - 30A Green Main fuse
F4 - 15A Blue HECU
F5 - 15A Red All lights / horn LH & RH / USB
charger
F6 - 10A Red EFI / speedometer / telematic
Do not use the motorcycle by shorting the wires without
a fuse. Never use a fuse with a rating other than that
specified . Failure to observe above rules may damage
the electric system or even cause fire.
A sticker with fuse colour codes and rating is pasted
inside the fuse box cover which can be referred during
fuse replacement.
Ensure to replace the ‘fuse puller’ in the same place for
future usage.
Care should be taken not to spray water on electrical
components.
Note
Fig. 79
