172
Chain can be adjusted when vehicle is supported by
centre stand (if applicable) or side stand or auxiliary
stand (paddock stand) in no load condition.
Always have these tightening torques to be checked
at TVS Motor Company Authorised Main Dealer after
assembly for safety.

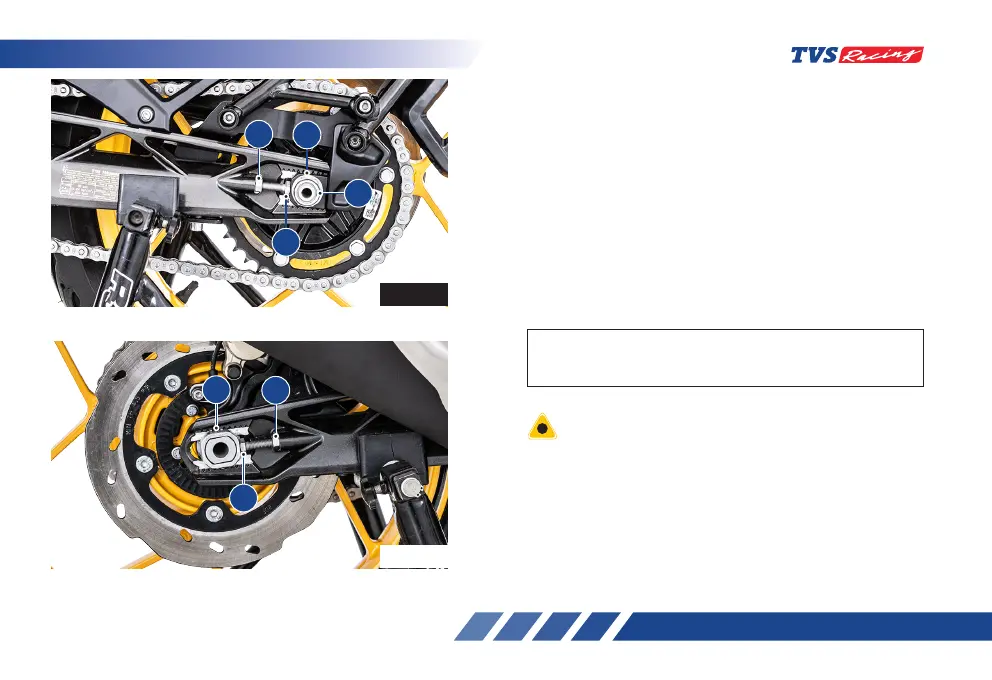

• Turn the adjuster screws (4 & 5) ‘in’ or ‘out’ to
obtain the specified slackness in the chain (ref.
Fig. 62 & 63).
• While ensuring that the notch in the chain adjuster
(6 & 7) is adjusted to the same scale value on
both left and right sides (ref. Fig. 62 & 63).
• Finally tighten the locknuts to the specified
torque.
• Similarly, tighten the rear axle nut and lock nut to
the specified torque, and check and ensure the
chain slackness.
Axle nut tightening torque 100 ± 15 Nm
Lock nut tightening torque 19 ± 3 Nm
1
2
6
4
7
5
3
Fig. 62
Fig. 63
