Instrument cluster will be activated once the ignition
lock is turned ‘ON’.
All segments and tell-tale indicators glow for 2
seconds on activation of instrument cluster for
checking and ensuring the proper working of
segments and indicators.
Following are the features of instrument cluster:

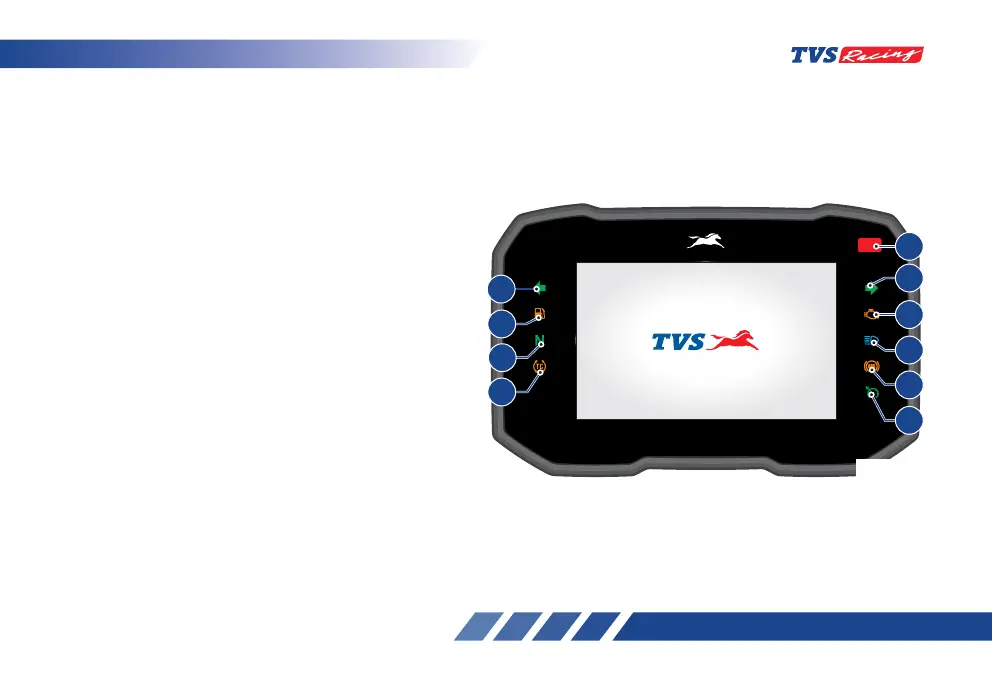

Warning and indicator lights (ref. Fig. 22)
A) Photo sensor cum shift light indicator
B) Turn signal indicator RH
C) EMS malfunction indicator
D) High beam indicator
E) ABS malfunction indicator
F) Cruise control indicator
G) Traction control indicator
H) Neutral indicator
J) Low fuel indicator
K) Turn signal indicator LH
Fig. 22
B
C
A
K
J
H
G
F
D
E
