TYM T723 User Manual

5. SHIFTERS AND RELATED PARTS.
5.1. CONSTRUCTION

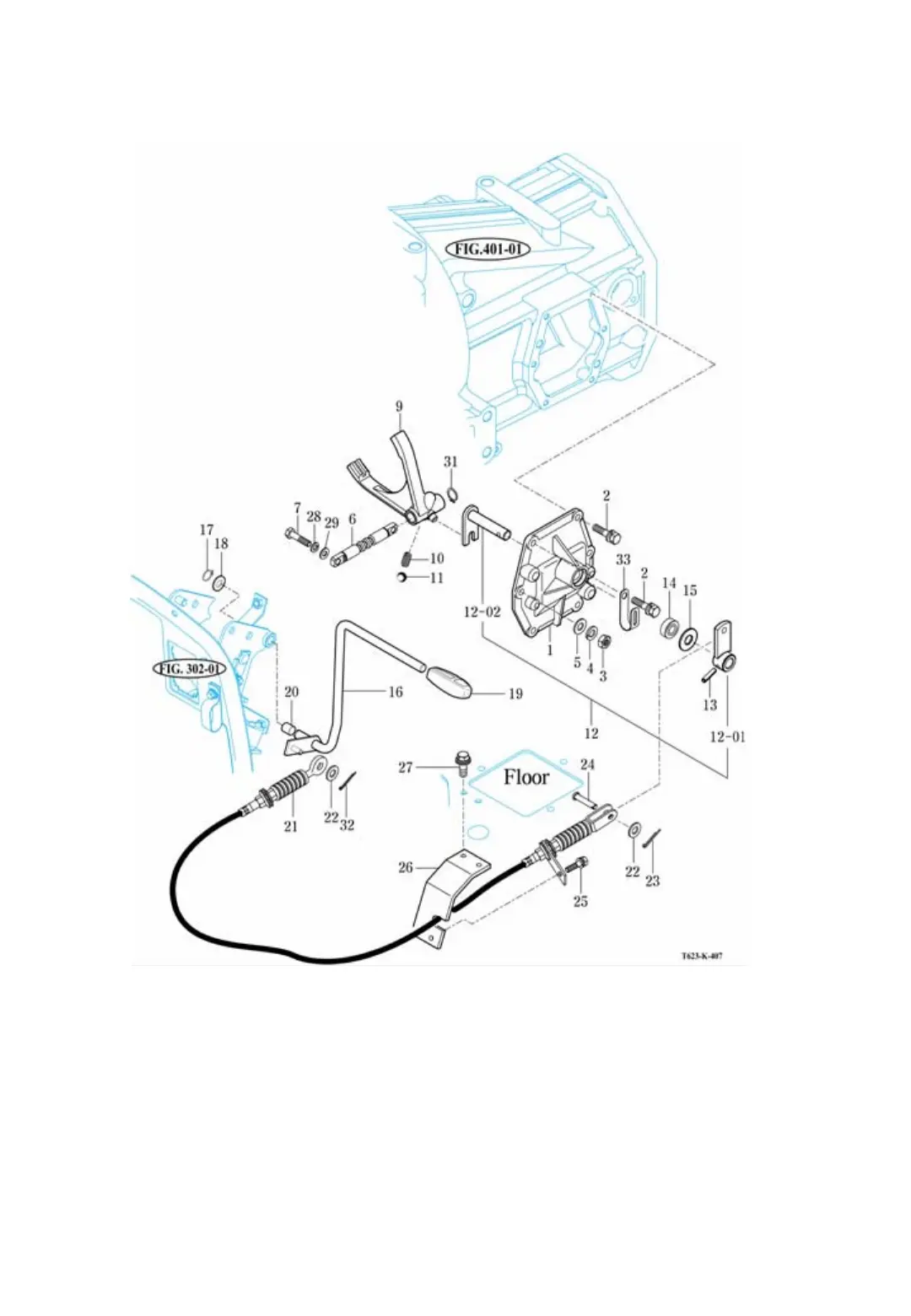

(1)Forward and reverse control linkage mechanism (Reverse speed shifter)
(synchromesh transmission version)
5-38
1.Metal(shifter,reverse) 2.Bolt(SP) 3.Nut 4.Washer spring 5.Washer plain
6. Stay lift reverse 7.Reamer bolt 9.Stay shifter reverse 10. Shifter spring 11.Steel ball
12.Arm(reverse) 13. Split pin 14. Oil seal 15.Washer 16.Lever(Bar/14) 17.Snap ring
18.Washer(15X24X2) 19. Grip 20.Bush 21.Cable 22. Washer 23.pin split
24.Pin 25.Bolt(S) 26. Plate 27.Bolt(SP) 28.Washer spring 29. Washer
31.Snap ring 32. Pin split
Fig.5-69
