TYM T723 User Manual

3. INSPECTION OF EACH PART
1) Inspection of the cleaner body
(1) Check the cleaner exterior for cracks,
deformation,or damage and repair or replace
if necessary.
(2) Check each packing for fatigue or damage
and replace if necessary.
2) Inspection of rubber hoses
Check the rubber hoses for fatigue or damage
and replace if necessary.

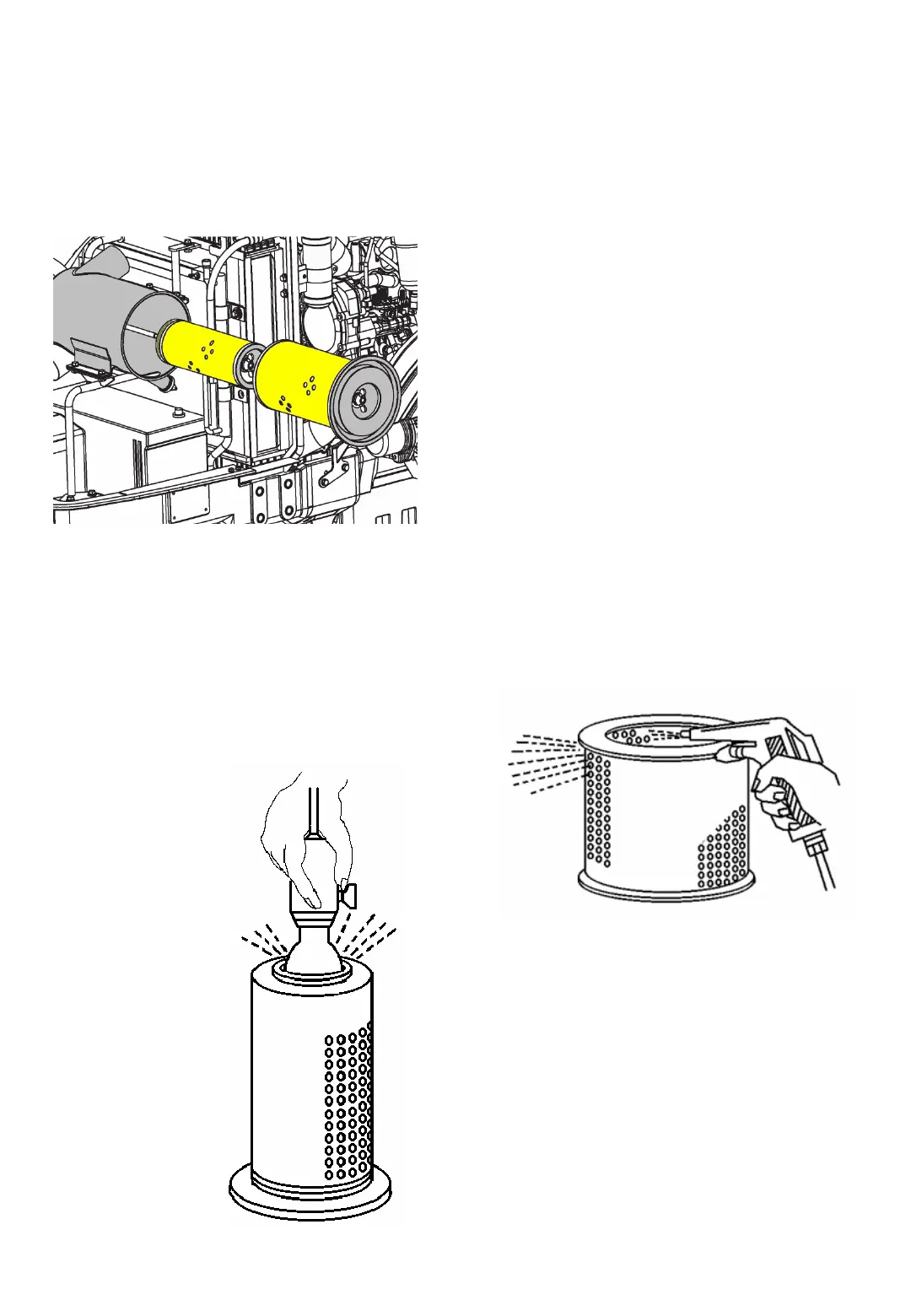

FIG.3-13 Element check
Note:
Especially note the glue portions of the paper and
metal parts.
4. CLEANING THE AIR CLEANER
Clean the air cleaner after 100 hours of
operation or less depending on conditions in
the following manner.
1) When the air cleaner is cleaned or the element
is replaced,dust accumulated inside the air
cleaner body should be removed with a cloth .As
inhaled dust causes engine wear,remove a dust
accumulated inside the inlet pipe,the rubber
hose which connects in the inlet pipe and the air
cleaner ,the inlet manifold,and inlet port.
(1)When accumulated dust is dry.
-When removing the dust in the element,hold
the element by a hand and pat the side wall
with other hand.Never hit the element against
a stone or a concrete wall because that might
cause its side wall to peel off.
-apply compressed air from inside of the element
to blow dust off while turning the element by
hand.
FIG.3-14 Element
Note:
The compressed air to be applied should not
have a pressure of more than 7㎏/㎠(99.6psi)
Maintain sufficient distance between the air gun
and the element.
(2)When accumulated dust is oily.
-Use a solution of TC 101 element detergent
or the quality household neutral detergent.
Leave the element in the solution for
approximately 30 minutes and then wash it by
dipping it in and out of the solution.
3-9
Fig.3-12
To check the
element for damage,
Dry it sufficiently
after washing and
put an electric bulb
in to the element
and look for
damage.
3) Inspection of the paper element
