12-4

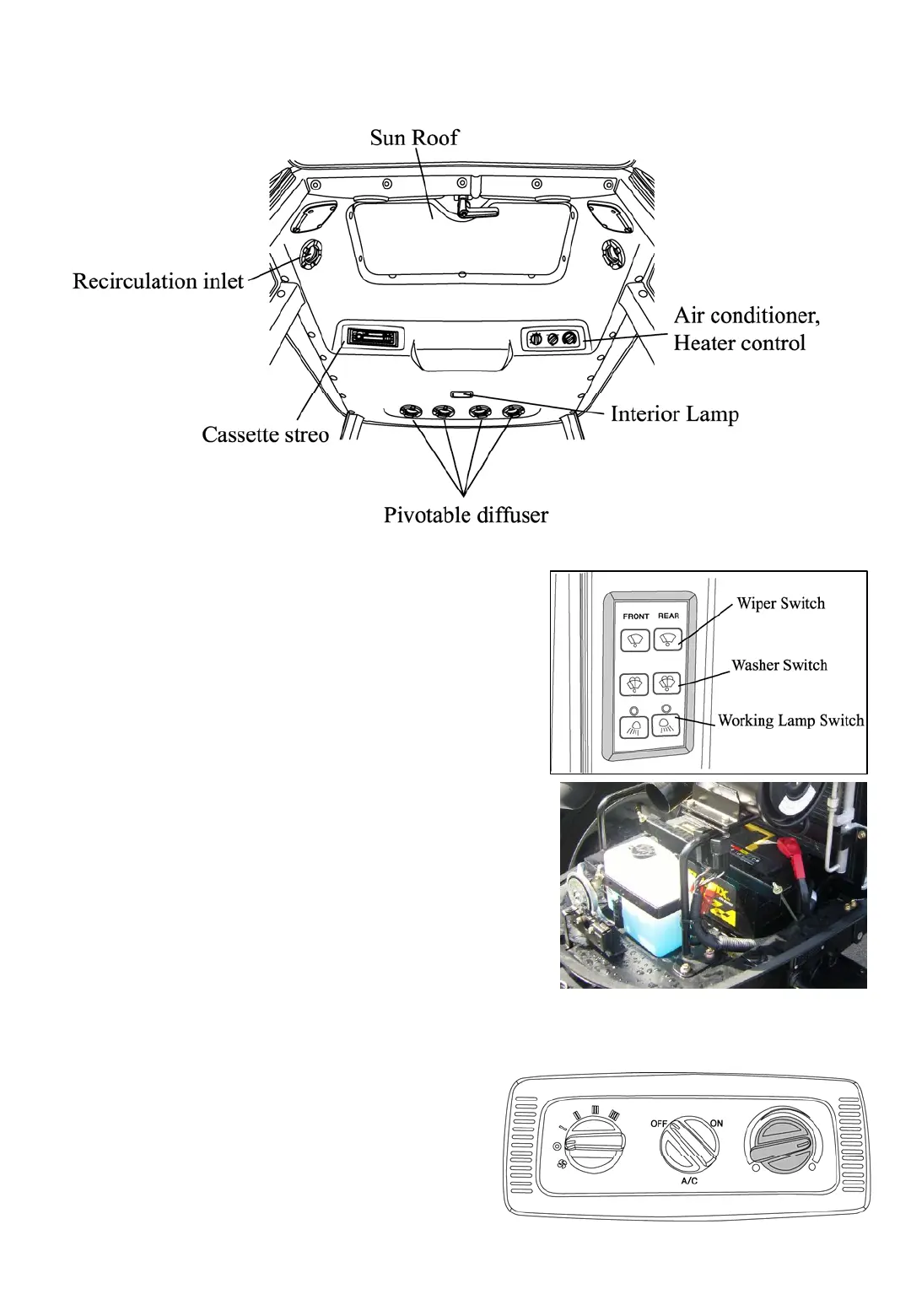

Section 3. CONTROLS
1) Working lamp Switch
The front and rear work lights are ON when push the
button .The work light indicator lamp on the instrument
cluster will illuminate.
2) Wiper and Washer control switch(Front and Rear)
ON SWITCH:
-Wind screen wiper operation
-Washer pump operation.
OFF SWITCH:
- Continuous pushing each button wind screen wiper
and washer pump off
Note : Windscreen Washer tank
Check the level of windscreen washer fluid in the
plastic reservoir located at the front of the Battery
During winter, it is advisable to add a suitable antifreeze
or methyl alcohol to the windscreen washer fluid.
3) Blower control switch
Four position rocker switch
4) Air con switch
Fig.12-8
Fig.12-10
Fig.12-9
