5) Circulation diffuses
With the circulation vent set in any position
outside Air will still be pulled into the cab.
VENTILATION
The ventilation unit is housed in the cab ceiling.
To switch it on and adjust it, turn the electrical fan switch to the desired speed.
The cab becomes slightly pressurized when the ventilation system is in operation, so that the fresh air
can enter only by way of the filter installed in the rear section of the cab roof.
The fan switch can be operated only after the ignition key is inserted.
The air flow can be regulated and directed by suitable positioning the air diffusers.
Air can be taken in fresh from outside or recirculated from within the cab by way of the relative side
inlets
Recirculation inlets fully closed:
air is taken in entirely from outside the cab through the rear grille and filtered through a paper element
positioned behind the grille.
N.B-it is very important that the air diffusers never be completed closed so as to allow for a steady air
flow.
To obtain a greater pressurization inside the cab, it is necessary to take the air from the outside,
therefore the inside air recirculatiing grille should be fully closed.

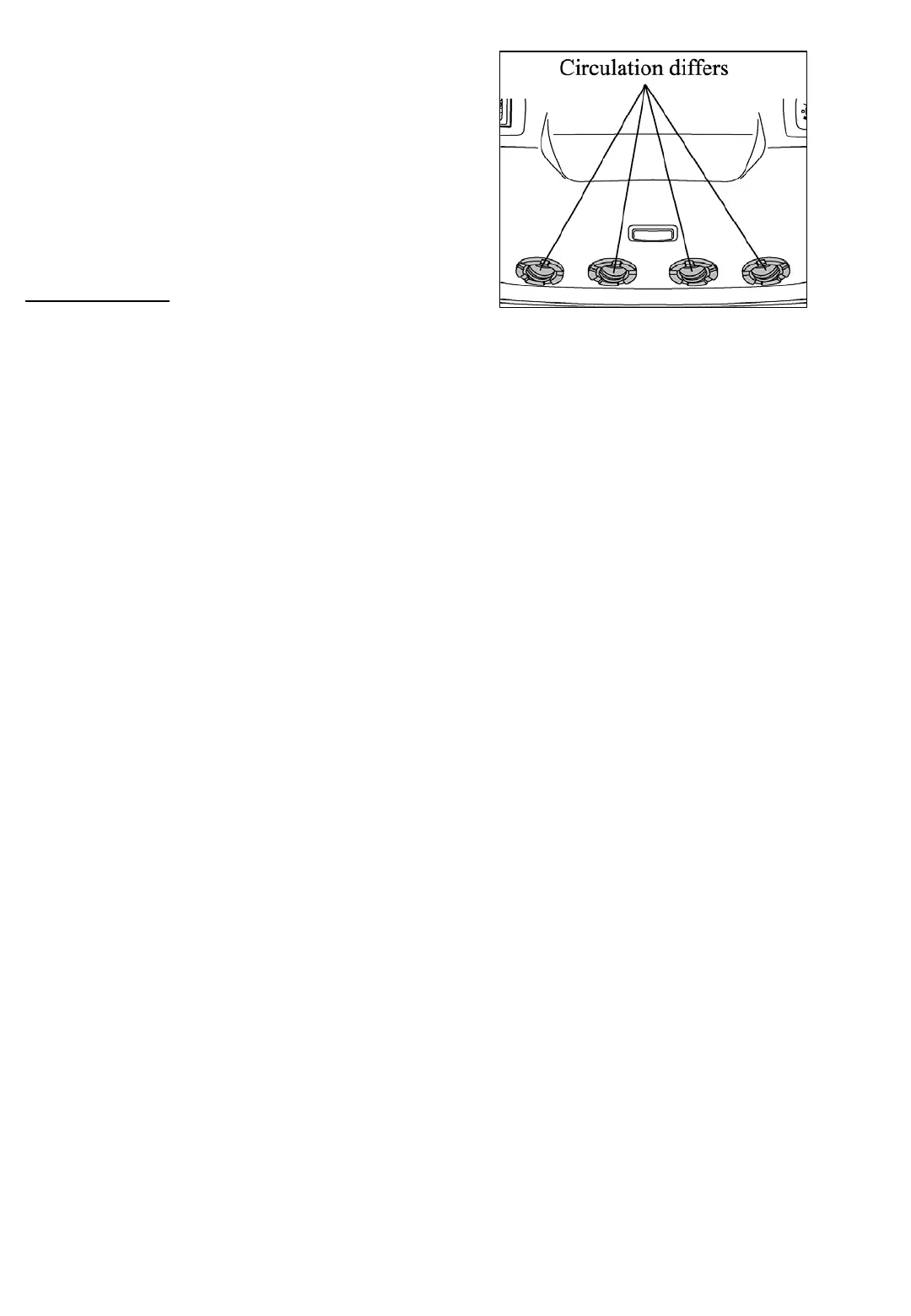

Fig.12-11
