TYM T723 User Manual

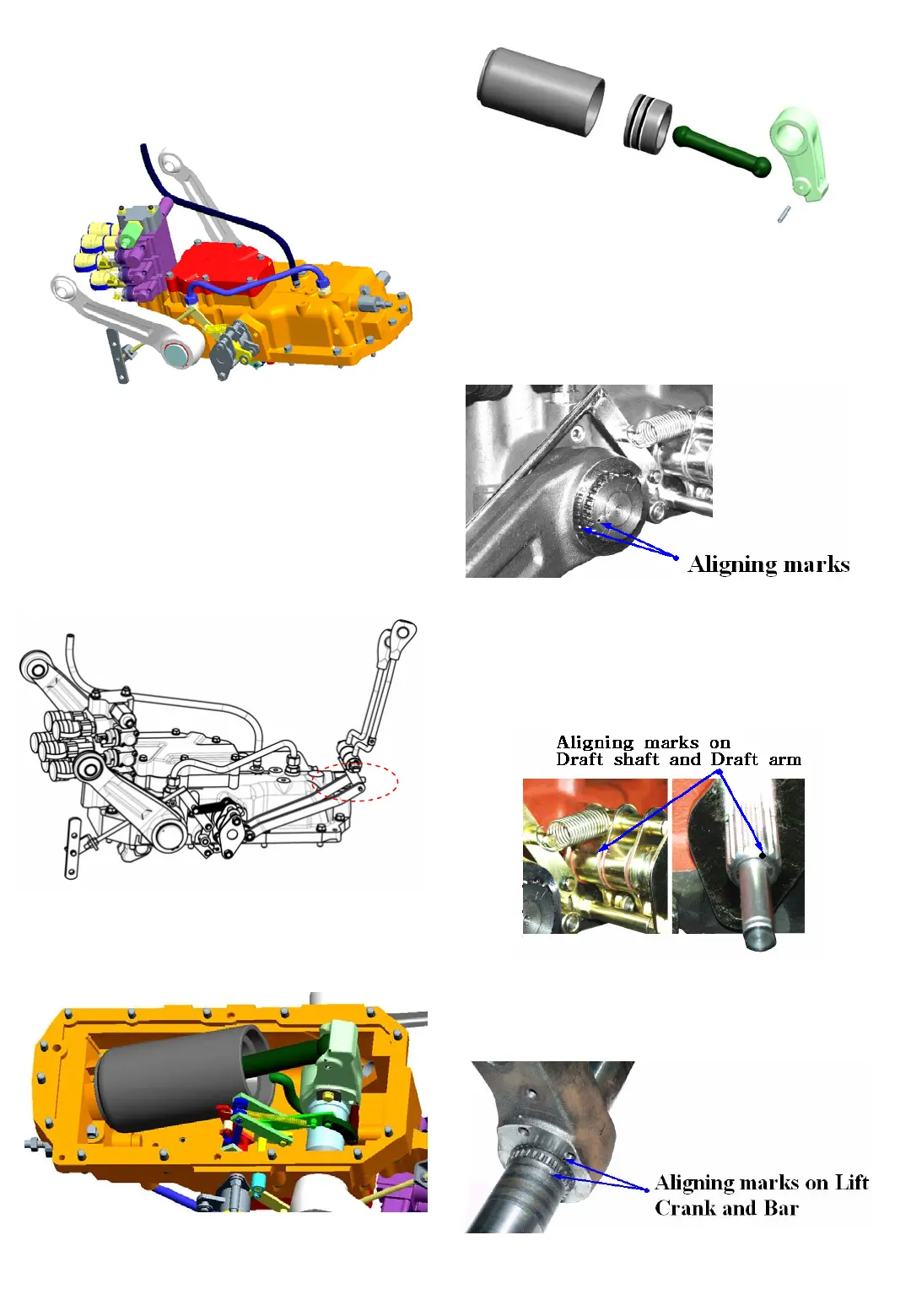

2.DISASSEMBLY
1)Remove the cylinder case assembly,referring
to relevant paragraph in Chapter 2.
Note:
Put the cylinder case on a wooden plank to
prevent the surface from damage.
2) Separate plate (position/draft) from
lever (position/draft) sub
Remove the split pin and washer
.
Fig.9-2-3
3) Remove the cylinder head and extract the
cylinder.Then remove the piston from the
cylinder.
9-5
Fig.9-3
4) Applying aligning marks on the Lift shaft(26)
and right hand lift arm(19),Then remove the
arm
5) Applying aligning marks on the Draft shaft
And Draft arm ,Then remove the shaft
6) Applying aligning marks on the Lift crank
And Bar ,Then remove Bar
Fig.9-5
Fig.9-6
Fig.9-7
Fig.9-2-2
Fig.9-4
