3. TRANSMISSION (CHAPTER 5)
1) FRONT AND SPACER TRANSMISSIONS
TRANSMISSION OIL CAPACITY 43 ℓ
SHIFTER DISENGAGING LOAD
Main shift
18 - 22 ㎏f
(40-49 lb)
17 ㎏f
(38 lb)
Measured at the shifters
(both for synchromesh
and sliding-select gear)
Front wheel drive,
Creep shift
18 - 22 ㎏f 17 ㎏f Measure at the shifter
PTO shift 18 - 22㎏f Measure at the shifter

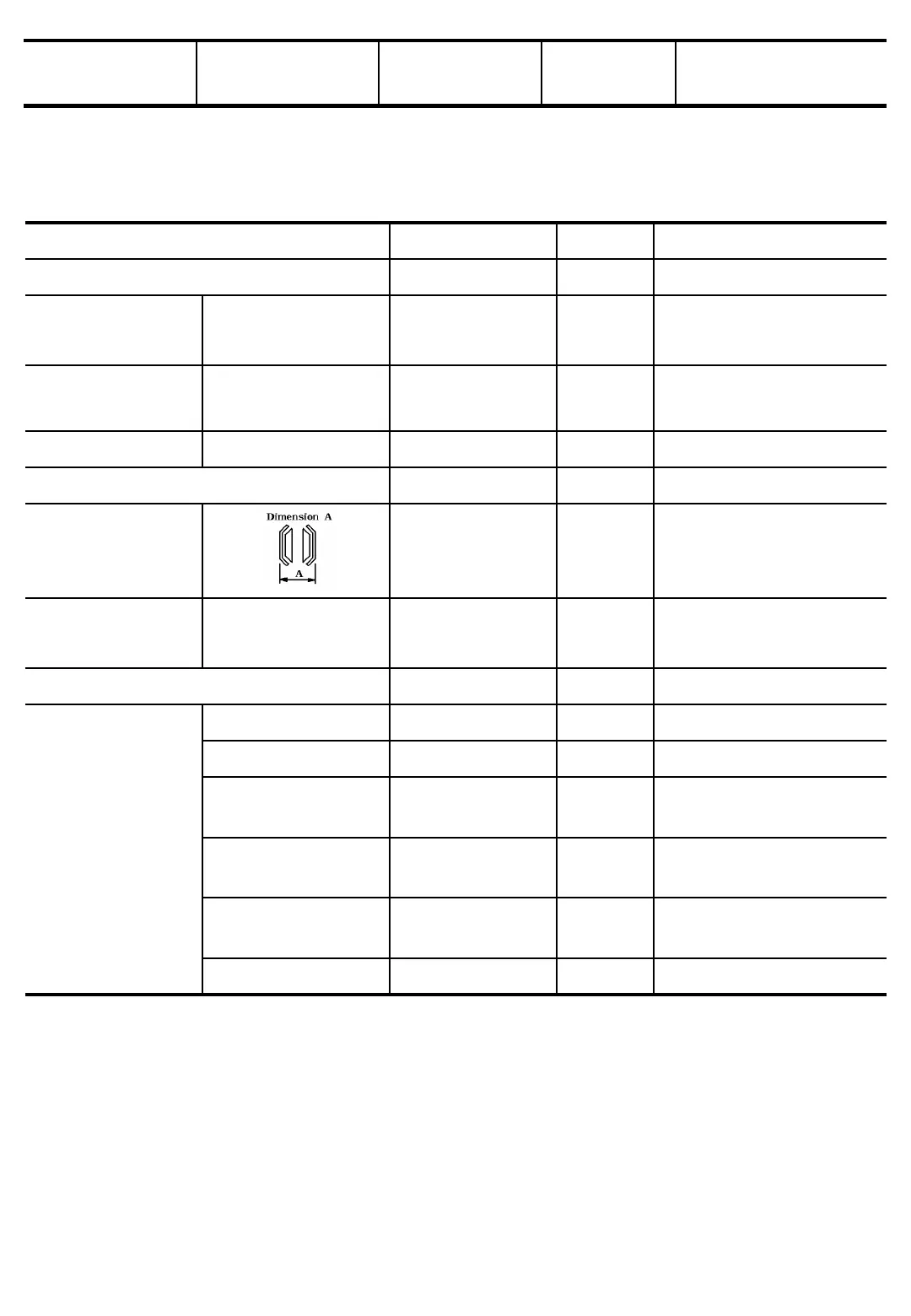

SYNCHRONIZER ASSEMBLY
Assembled width
49.08-49.88 ㎜
(1.932-1.964 in)
Synchro-hub
thrust load
13.0-18.8 ㎏f
(28.7-41.5 lbs)
9.5 ㎏f
(20.9lbs)
from neutral to engaging
when applied on the
spring
Individual gears back lash 0.1 ∼0.2 ㎜ 0.5 ㎜
Independent Rear
PTO clutch
Disk thickness 2.6 ±0.1 ㎜ 2.4 ㎜
Disk flatness 0.2 ㎜
Driven plate
thickness
1.6 ±0.05 ㎜ 1.5 mm
Driven plate
flatness
0.15 ㎜
Brake disk
thickness
3.0 ±0.1㎜ 2.6 ㎜
Brake disk flatness 0.2 ㎜
Part names and
inspection items
Nominal
dimensions
Standard value
for reassembly
Usable limits Service instructions
and remarks
11-3
