SECTION 3. DISASSEMBLY,INSPECTION,AND REASSEMBLY

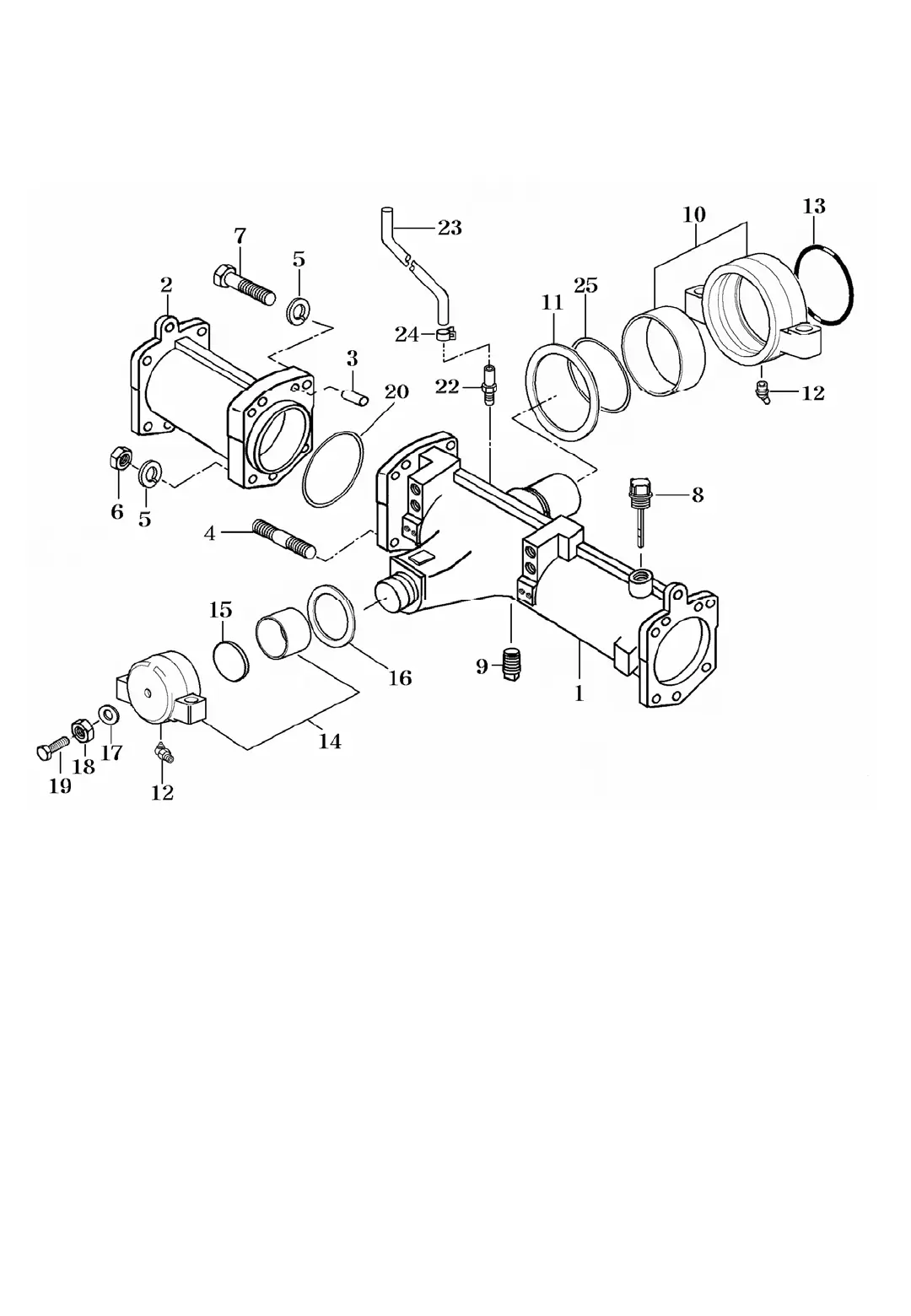

1. CENTER PIVOT
6-3
1.Housing,front axle
2.Case(Front axle)
3.Pin(A)
4.Stud
5.Washer spring
6.Nut
7.Bolt
8.Oil Cap (B)
9.Plug
10.Support(Rear)
11.Collar(105.5X126X3.2)
12.Nipple
13.O-ring(101.19X3.53)
14.Support(Front)
15.Space
16.O-ring
17.Seal washer
18.Nut
19.Bolt
20.O-ring
22.Connector
23.Hose(Fuel/829)
24.Clamp
25.O-ring
Fig.6-3
