TYM T723 User Manual

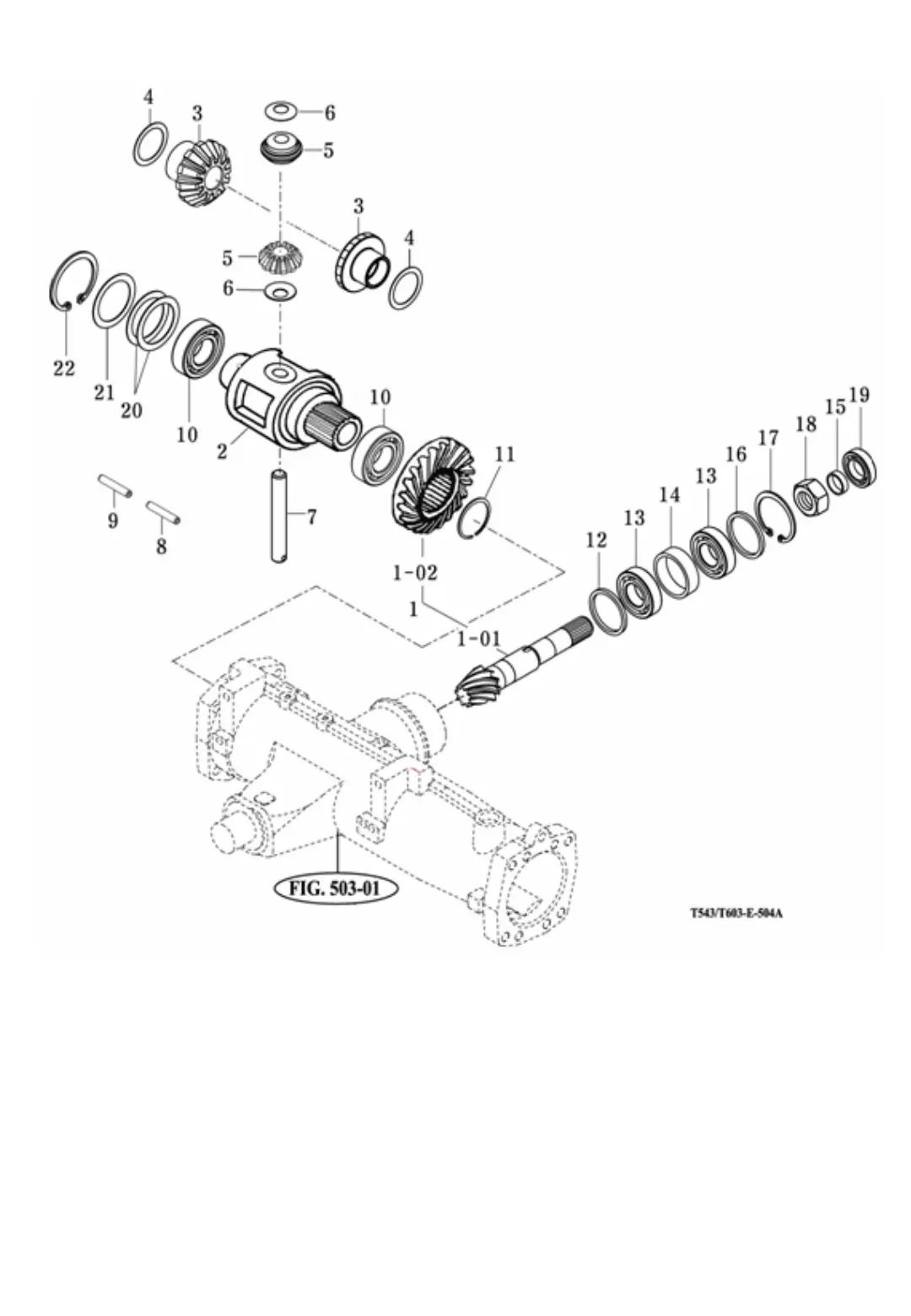

2. FRONT DIFFERENTIAL
1.Bevel gear(9-24) set 2.Diff case 3.Diff side gear 4.Thrust washer(40X58X1) 5. Diff pinion
6. Diff pinion washer 7.Diff pinion shaft 8.Spring pin 9.Spring pin
10.Ball bearing 11. Snap ring 12.Shim(67X72X0.1) 13. T.R.B
14.Collar,Spacer 15.Sleeve 16.Spacer collar 17.Snap ring
18.Nut(M30) 19. Oil seal 20.Shim 21.Shim
22. Snap ring(hole)
6-6
Fig.6-10
