3. FINAL CASE
3-1. Final gear case 1.
6-10
1.Final case 2.Gear bevel(10) 3.Ball bearing 4. Shim(88X100X0.1)
5.Shim (88X100X1.5) 6.Snap ring 7.Shaft 8.Mechanical seal
9.Ball bearing 10.Oil seal 12.Ball bearing 13. Link arm 14.Pin
15.Washer spring 16.Bolt 18.Cap(100) 19.Plug
20.Final case 22.Ball bearing 23.Gear bevel(17) 24.O-ring
25.Gear bevel(10) 26.Ball bearing 27.Shim(80X90X0.1) 28.Shim(80X90X1.5)
29.Snap ring 30.Shaft (LH) 31.Pin(A) 32 Front axle housing
33.washer spring 34.Bolt 35.Bolt(M10X25) 36.Nut

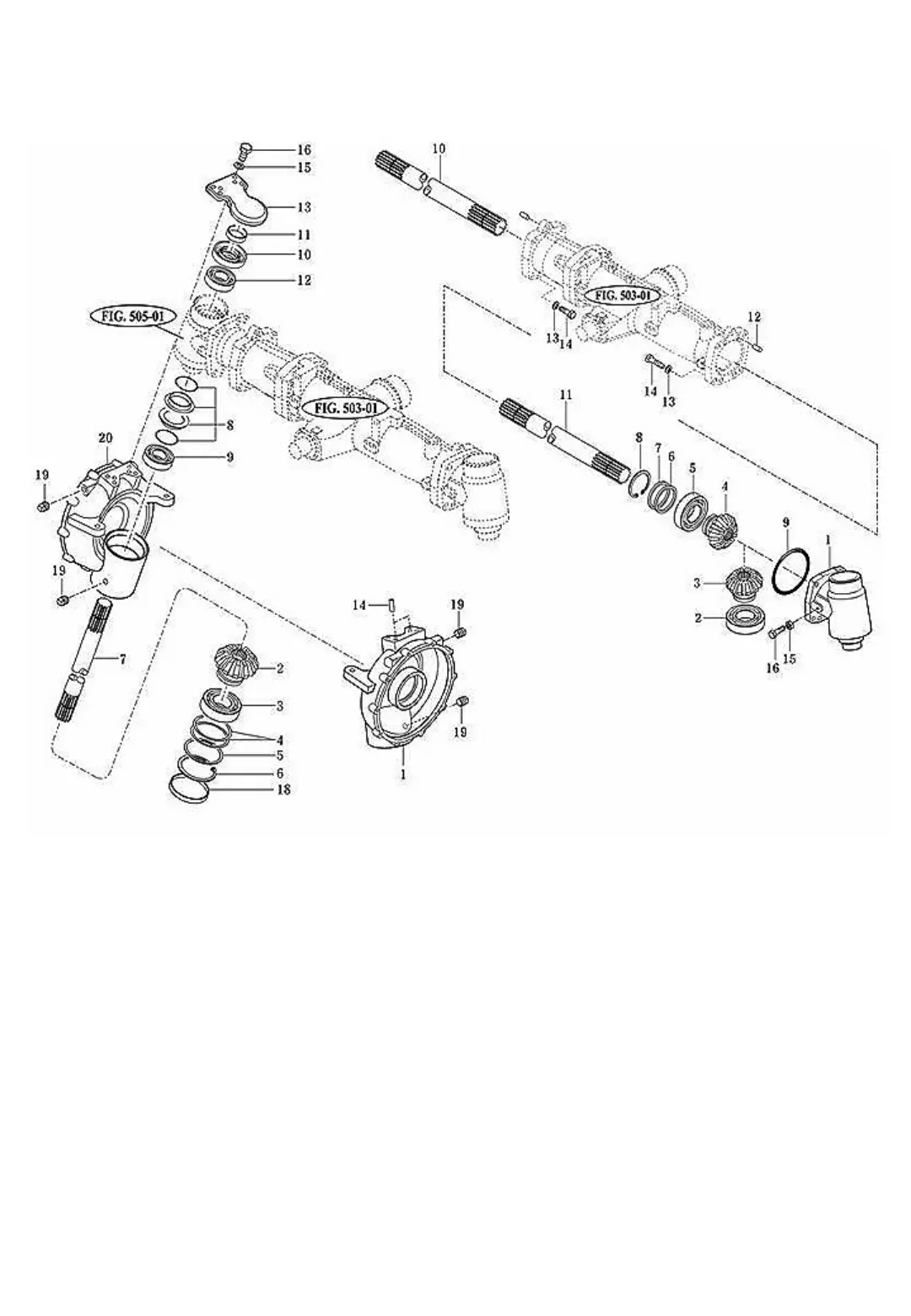

Fig.6-18
