SECTION 2. SPECIFICATIONS
T723
Wheel alignment Toe-in (mm) 0~5 mm
Camber 2°
Caster 15°
Front axle Pivot metal (F) bore (mm) Φ55
Pivot metal (R) bore (mm) Φ106.3
Pivot metal (F) bush (mm) 50X55X35
Pivot metal (R) bush (mm) 100X106.3X30
Housing (F) Diameter (mm) Φ50
Housing (R) Diameter (mm) Φ100
Front wheel steering angles(RH) 52 ˚
Front wheel steering angles(LH) 52˚
6-2

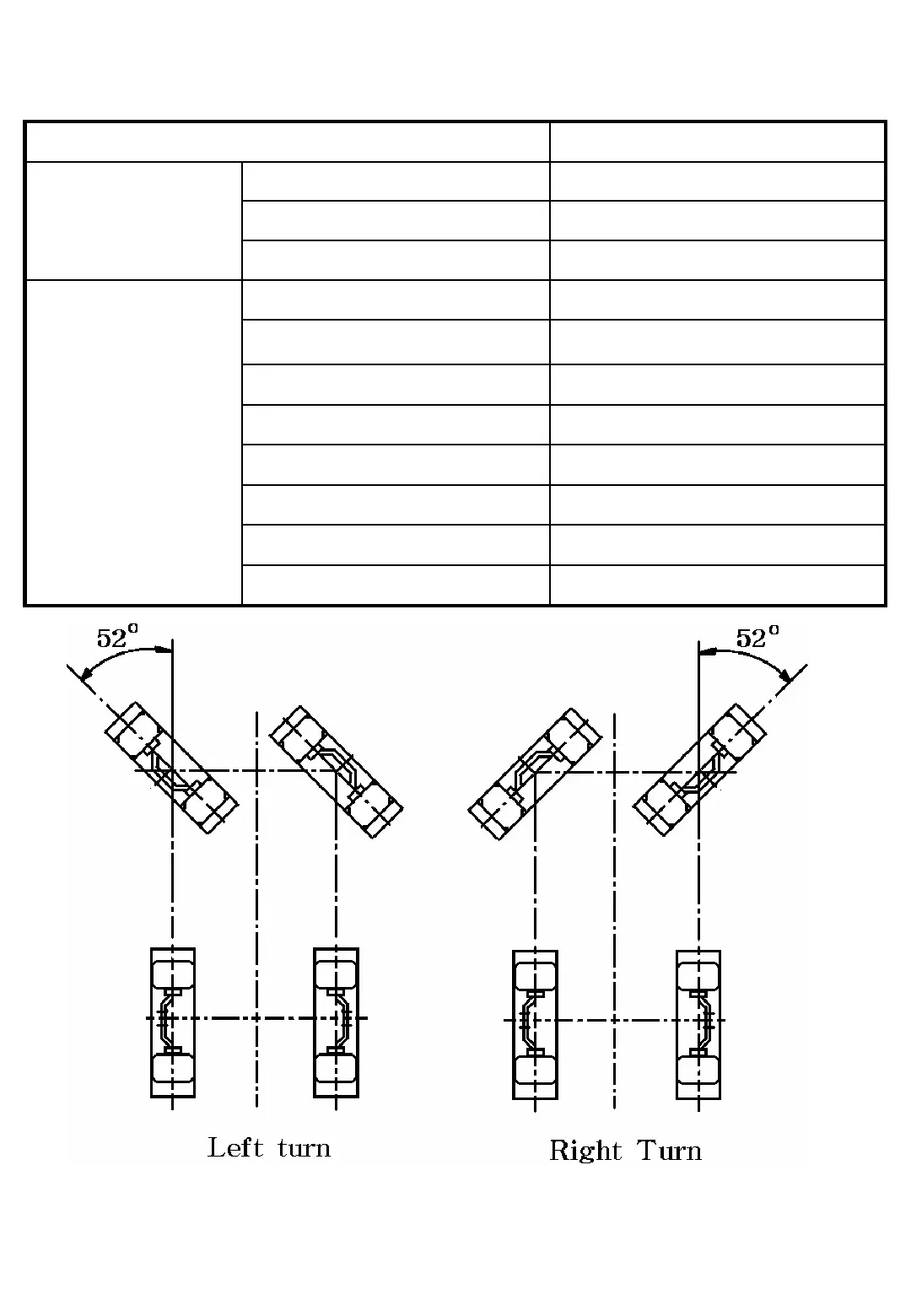

Fig.6-2
