TYM T723 User Manual

12-2
Section 2.Precautions for cabin operation

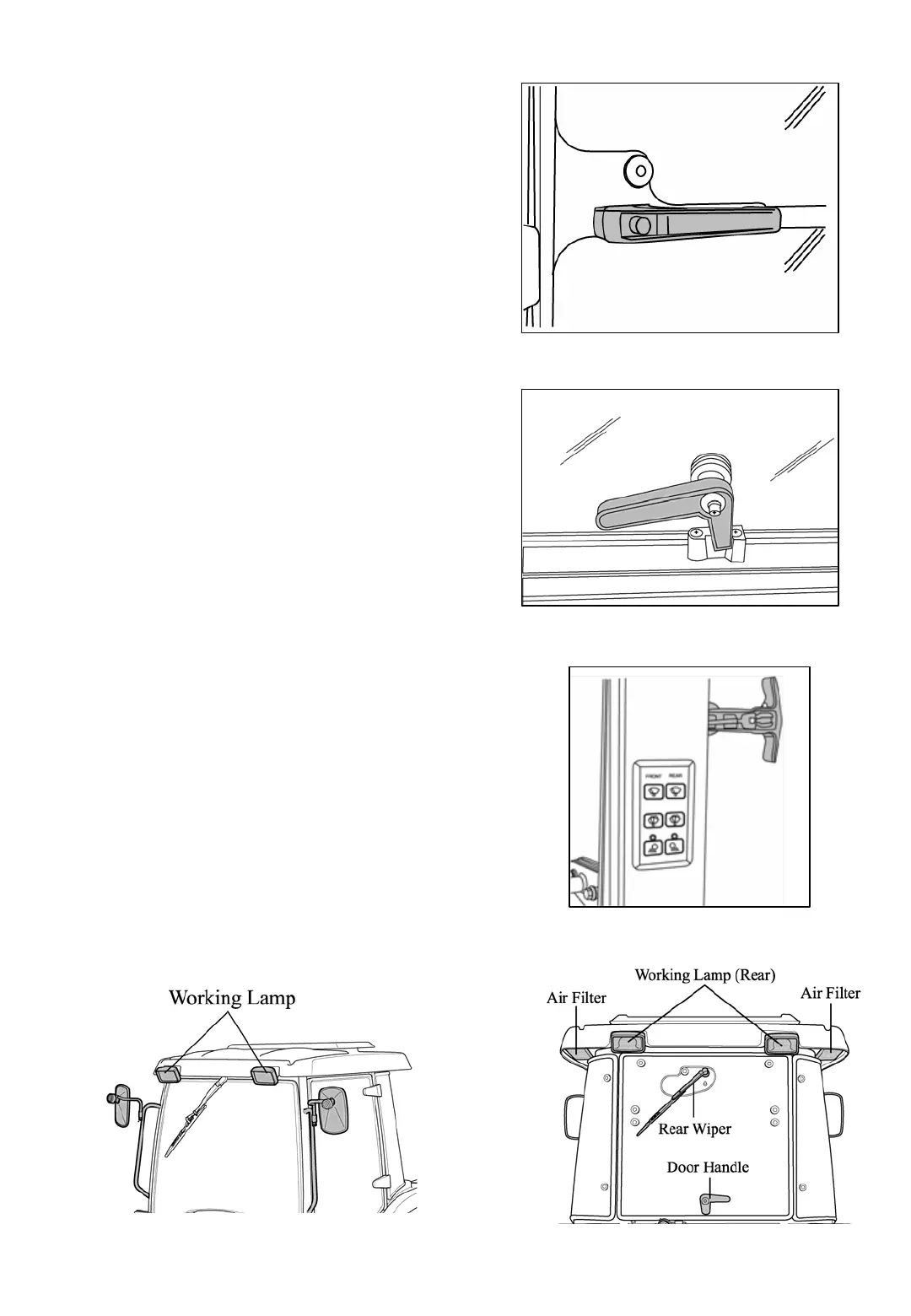

1.Instruments and related parts.
1) Doors:
The doors are provided with key locks.
To open from the outside, when unlocked,
depress the push button.
To open from inside, push the lever downwards.
2) Rear Window:
The rear window is fitted with central handle
for opening.
When opened it is held in place by two dampers.
3) Side Window:
The side window is fitted with central handle
for opening.
When opened it is held in place by holder.
4) Working lamps (front and rear) :
the working lamps are located on the cab roof (two in the
front and two in the rear) .They are switched on by means
of the special switches on the roof console
Fig.12-2
Fig.12-3
Fig.12-4
Fig.12-5 Fig.12-6
