4. FLOW-CONTROL VALVE(SLOW-RETURN CHECK VALVE)
4.1. GENERAL DESCRIPTION
This valve regulates the lowering speed of the lift by controlling the unloading flow from the lift
cylinder to the tank.
① Dust seal
② Snap ring
③ Collar
④ Body
⑤ 0-ring
⑥ Adjust screw
⑦ Back-up ring
⑧ 0-ring
⑨ Stop ring
⑩ Poppet
⑪ Spring
⑫ 0-ring

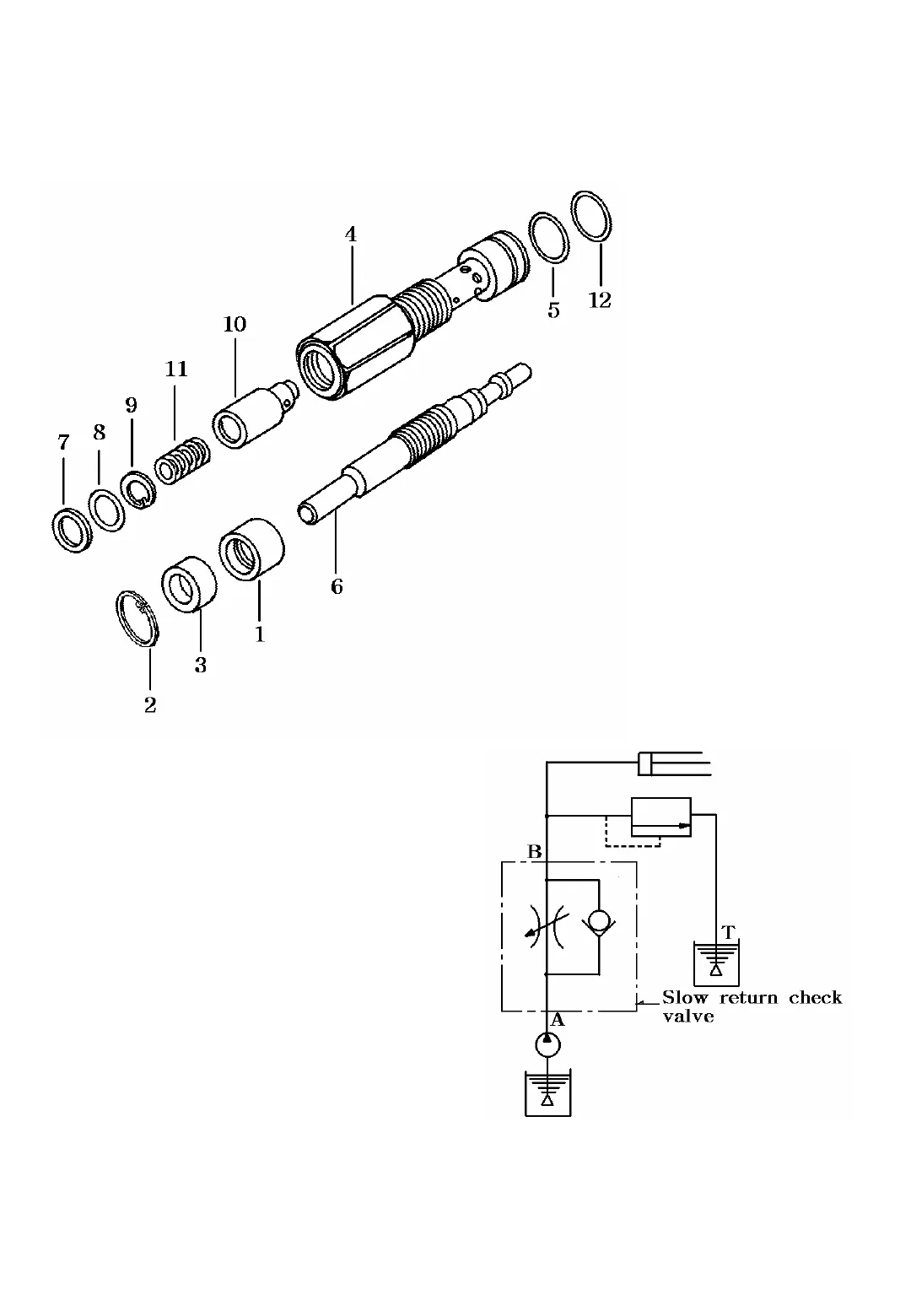

Fig. 9-42 Slow-return check valve Diagram
