SECTION 3. FUNCTION
1.Open Center Non Load Reaction
1.Neutral Position
When the steering control valve is in the neutral position,inlet flow(P) from the priority valve moves
the flow selector spool against its spring.This flow is blocked at the control valve control spool.The
signal port is connected to the reservoir(T) through orifices in the control spool.The priority valve
will only supply enough oil to the control valve to compensate for internal leakage and maintain low
stand-by pressure.The oil at each side of the steering cylinder is connected to each side of the
metering pump,
this allows a degree of self centering when turning out of a bend.
8-3

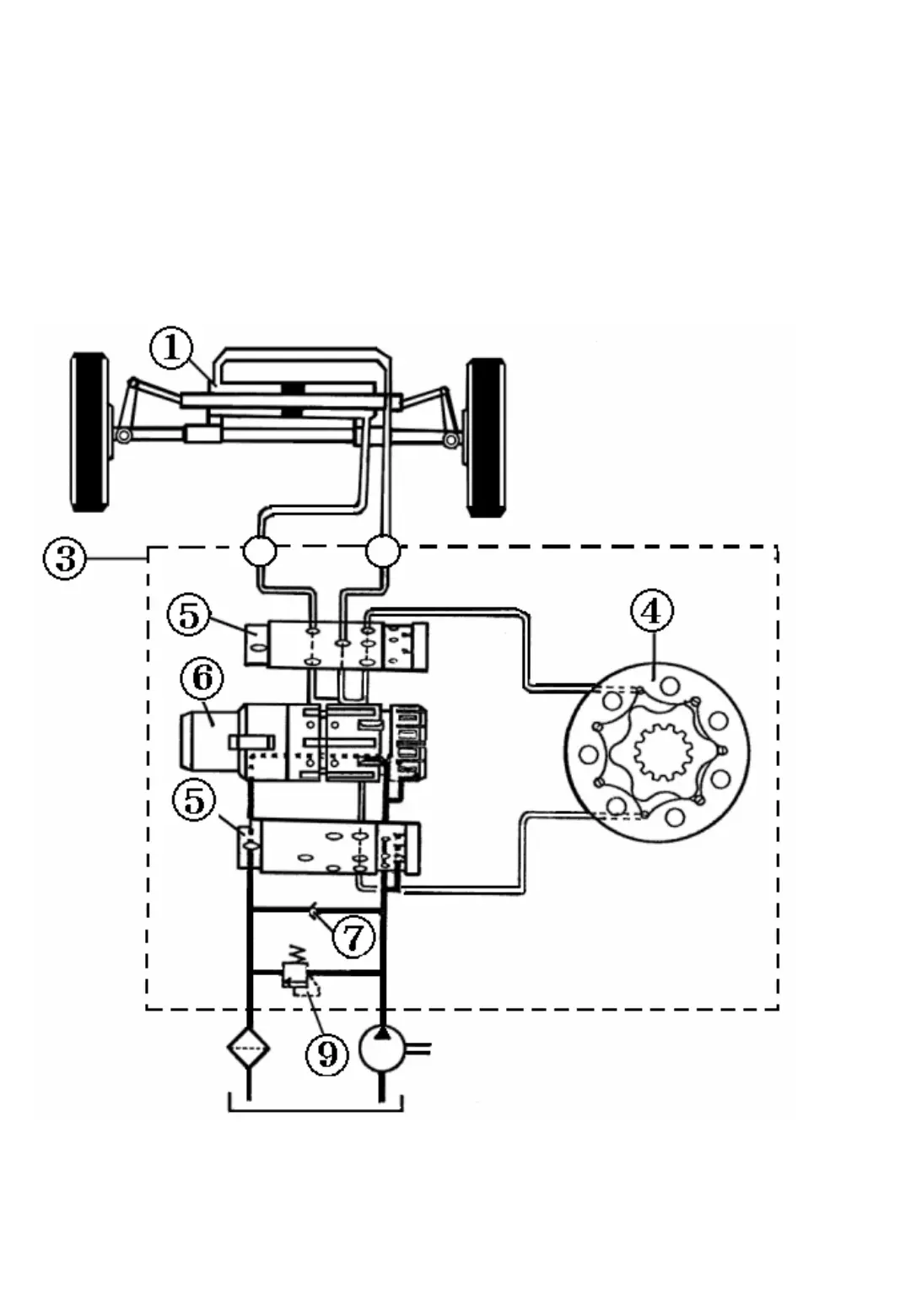

①
Steering cylinder ③
Steering unit ④
Rotor ⑤
Sleeve ⑥Main spool
⑦
Check valve ⑨Main relief valve
Fig.8-2 Neutral position
