TYM T723 - Separation of the Front Transmission and Spacer Transmission

4. SEPARATION OF THE FRONT TRANSMISSION AND SPACER
TRANSMISSION
Parts which can be inspected during this operation
-Reverse change gears
-Creep change gears
-Main change gears and related parts

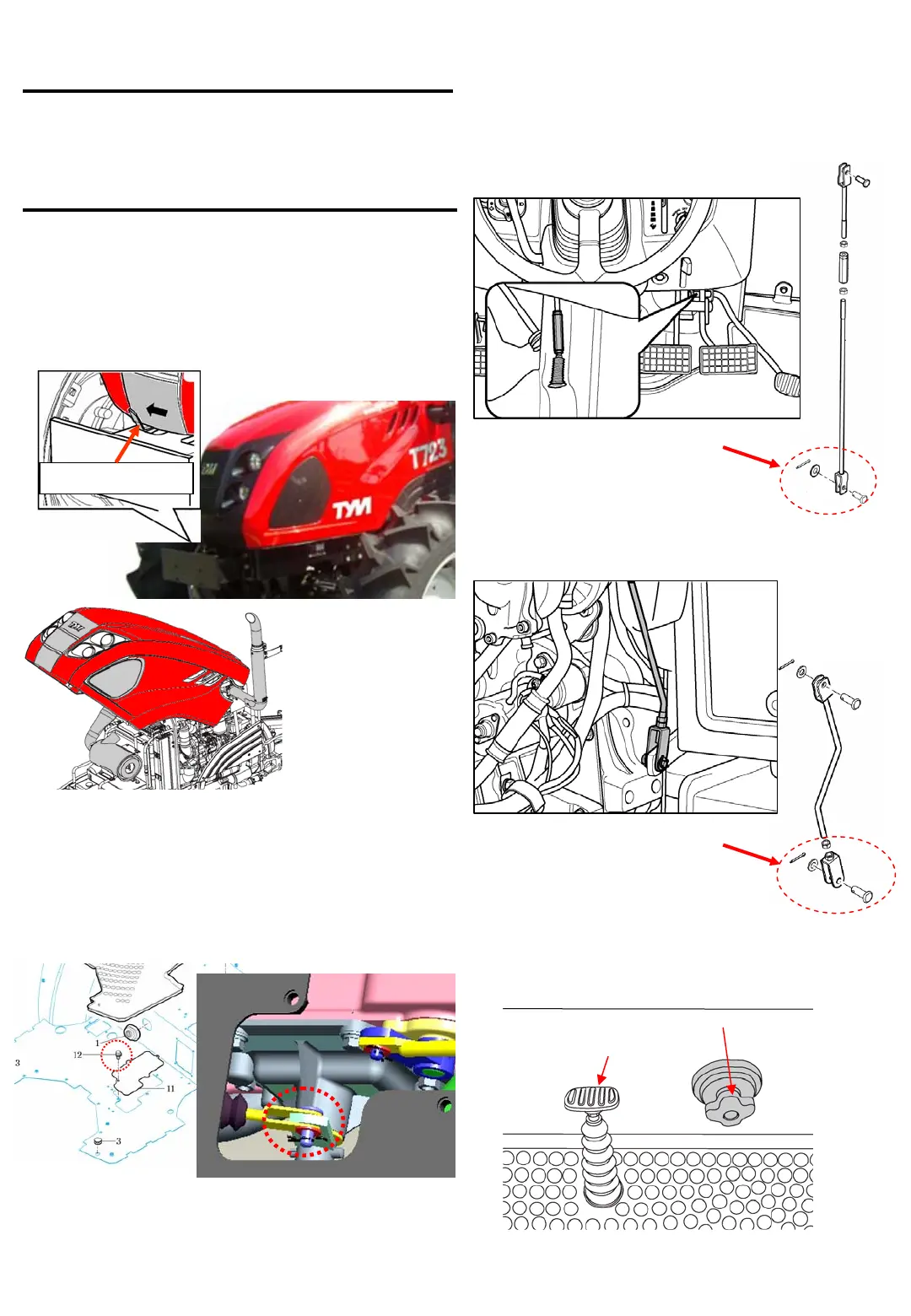

(1) Removal
A : Removal of the cabin
1) Remove the hood after opening the Hood
assembly
2-12
4) Disconnect four power steering hoses
(Refer to the Fig 2-27 Power steering)
5) Disconnect the brake rods under the floor.
Fig.2-33 Brake rod (LH, RH)
6) Disconnect the clutch rods in front of the floor.
2) Disconnect the battery cables and fuel line.
(Refer to the Fig 2-14)
Note : Disconnect the other wiring couplers.
3) Disconnect the reverse wire under the floor.
Fig.2-30
Fig.2-31 Reverse change
Fig.2-34 Clutch rod
Remove the retaining pin
Remove the retaining pin
Hook release lever
7) Remove the slow-return check valve knob.
8) Remove the diff-Lock pedal
Fig.2-35
Dif-Lock Pedal
Slow return check
Valve Knob
