9) Remove the main shift and transmission range
shift levers. The levers can be separated in the
middle.
10) Remove the control rods of the PTO shift and
4WD shift levers from the transmission.
11) Remove the position , draft control levers,
External hyd. levers and Joy-stick levers.

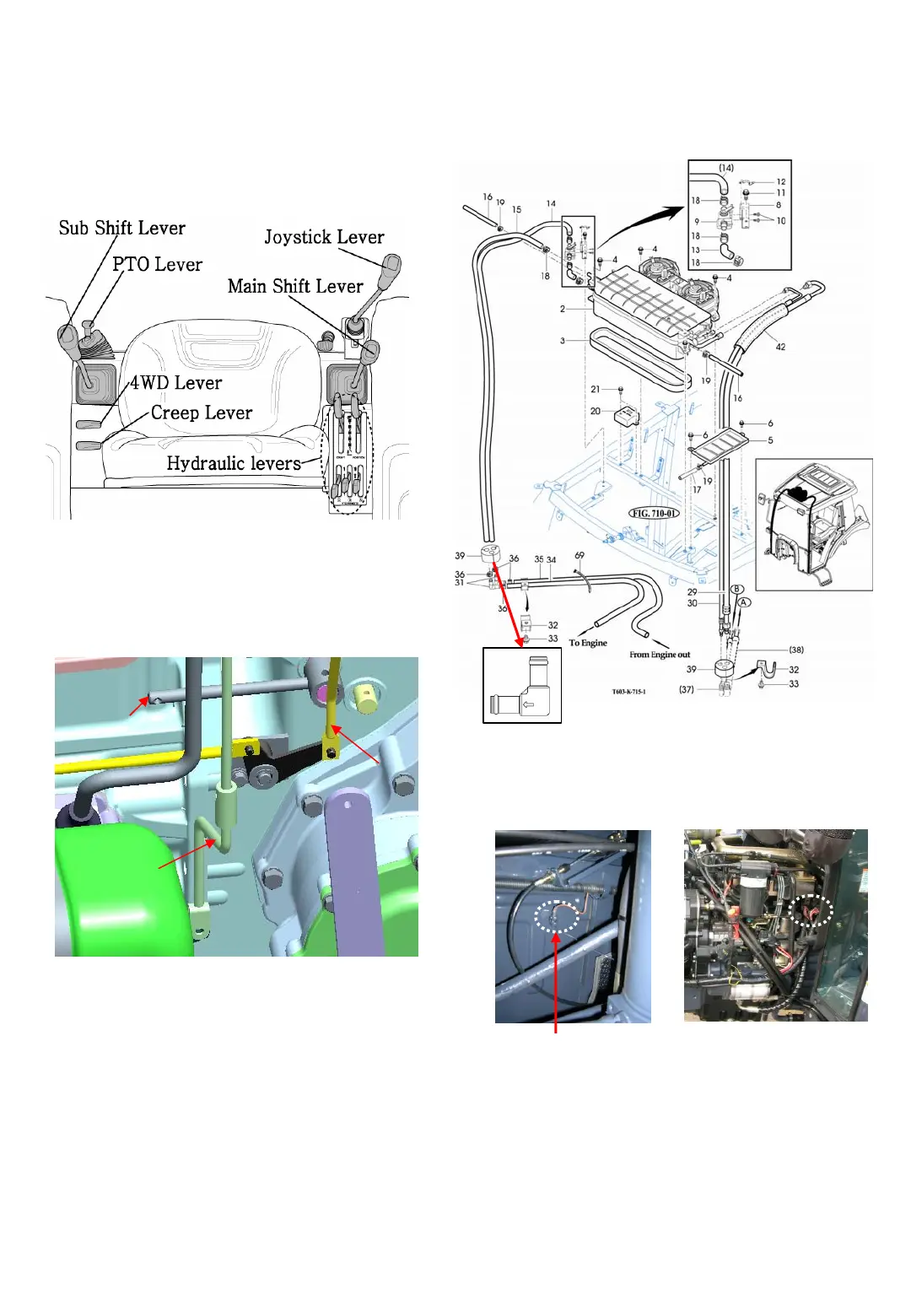

Fig.2-36 Range shift lever
Note : The best way to remove above levers is
to loosen linkages under the floor.
Fig.2-37 Range shift lever (LH)
12) Remove the accelerator wire (Refer to
the Fig 206 in the Parts catalogue)
13) Remove the quick coupler (Freezer hose)
and heater hose.
Fig.2-39
14) Remove the electrical wires
Fig.2-41
PTO solenoid wire and the engine harness
PTO solenoid switch
Engine harness and
Main harness
(Under the floor (RH))
2-13
