TYM T723 - Speed Shift Patterns and Gear Train Diagrams

5-2
4. SPEED SHIFT PATTERNS AND GEAR TRAIN DIAGRAMS.

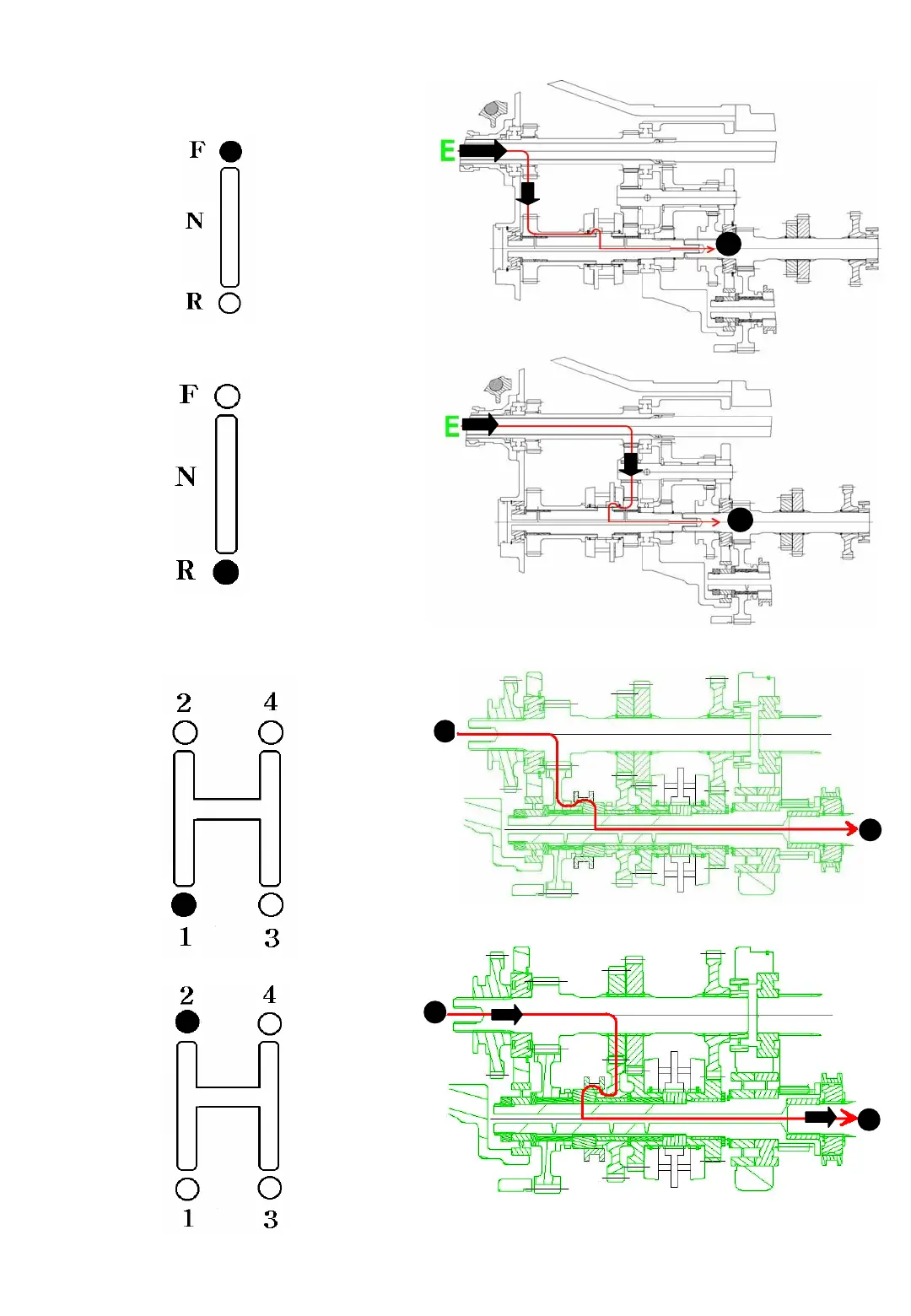

1) Reverse change gears
Forward
Reverse
Fig.5-2
Fig.5-3
2) Main speed shift(Main change gears)
1st
Fig.5-4
2nd
Fig.5-5
1
1
1
2
1
2
