4-3
SECTION 3. DISASSEMBLY, INSPECTION, AND REASSEMBLY
1.MAIN CLUTCH
1-1.Disassembly
Separate the engine from the front transmission
referring to the paragraph "SEPARATION OF
MAJOR COMPONENT in chapter 2.“
2) Remove the clutch assembly from the flywheel.
1.Cover clutch
11.Clutch disc assy
21.Hub sleeve
22.Bolt(S)
23.O-ring(G75)
27.Sleeve
28.Bearing(Release)
29.Tension spring
Note:
When removing the bolts,loosen them gradually
in diagonal sequence.
Take care not to let oil get on the clutch facing.
Fig. 4-4
Rivet suppression Usable limit
0.2mm(0.008in)
Fig. 4-5

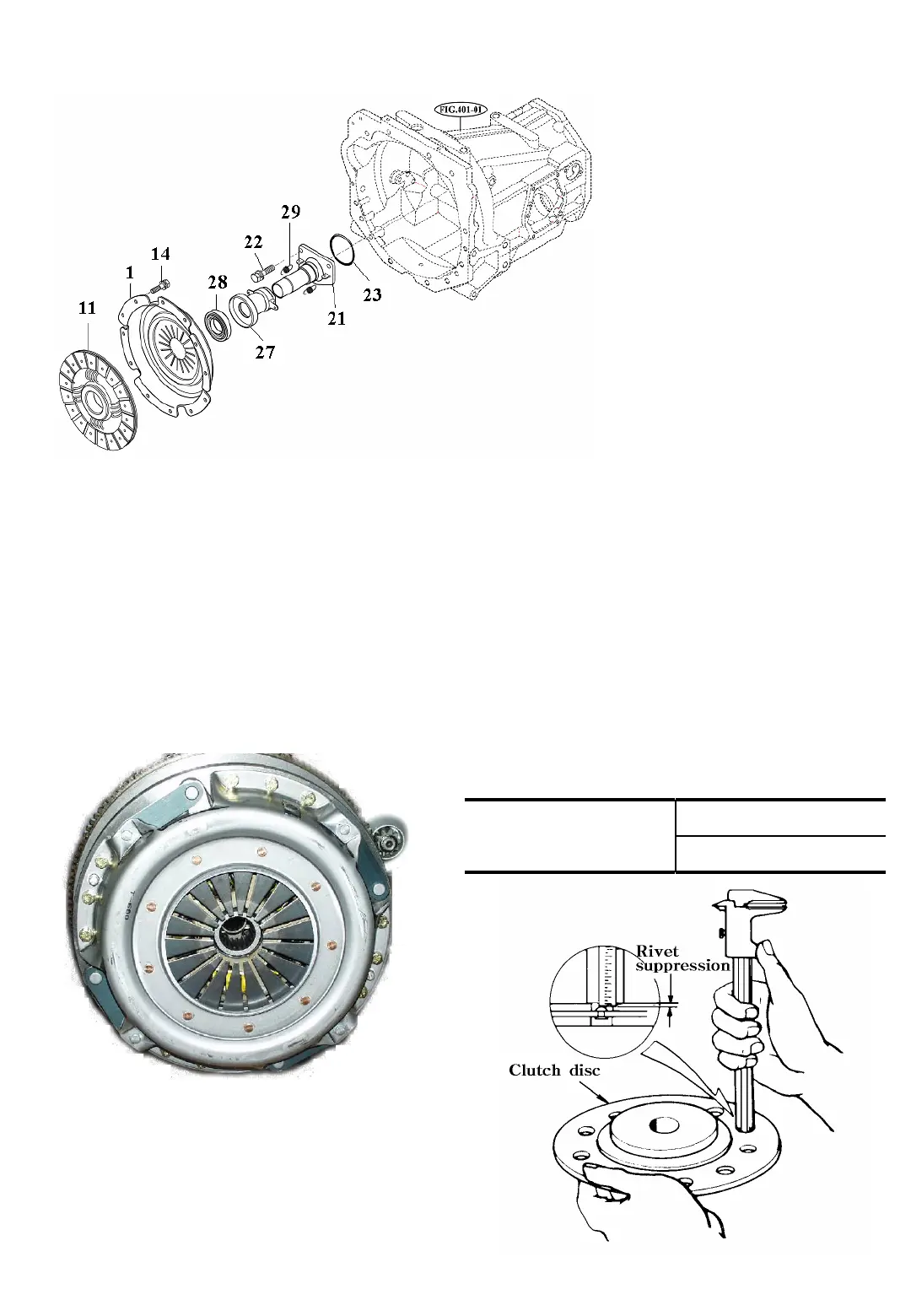

Fig. 4-3 Clutch assembly
1.2. INSPECTION
(1) Inspection of the clutch disk
Check the clutch disk for wear or cracks on
the facing,loose rivets,broken torsion springs,
or wear of the hub splines.
1) Measure the suppression of the rivets, if the
suppression is 0.2 mm or less and cracks or
burnt damage are found on the surface,the disc
must be replaced.
